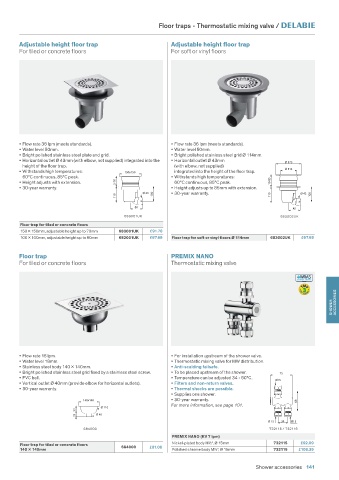

Page 143 - Water_Controls_for_Healthcare

Floor traps - Thermostatic mixing valve /

Adjustable height floor trap Adjustable height floor trap
For tiled or concrete floors For soft or vinyl floors

• Flow rate 36 lpm (meets standards). • Flow rate 36 lpm (meets standards).
• Water level 50mm. • Water level 50mm.
• Bright polished stainless steel plate and grid. • Bright polished stainless steel grid Ø 114mm.
• Horizontal outlet Ø 43mm (with elbow, not supplied) integrated into the • Horizontal outlet Ø 43mm Ø 175
height of the floor trap. (with elbow, not supplied)
• Withstands high temperatures: 150x150 integrated into the height of the floor trap. Ø 114
60°C continuous, 85°C peak. • Withstands high temperatures:
• Height adjusts with extension. 5-70 60°C continuous, 85°C peak. 10-85
• 30-year warranty. • Height adjusts up to 85mm with extension.
Ø 43 100 • 30-year warranty. Ø 43
110 110 100
80
80
683001UK 683002UK
Floor trap for tiled or concrete floors
150 150mm, adjustable height up to 70mm 683001UK £91.78
100 100mm, adjustable height up to 80mm 682001UK £67.69 Floor trap for soft or vinyl floors Ø 114mm 683002UK £67.69

Floor trap PREMIX NANO
For tiled or concrete floors Thermostatic mixing valve

SHOWER ACCESSORIES

• Flow rate 18 lpm. • For installation upstream of the shower valve.
• Water level 18mm. • Thermostatic mixing valve for MW distribution.
• Stainless steel body 140 140mm. • Anti-scalding failsafe.
• Bright polished stainless steel grid fixed by a stainless steel screw. • To be placed upstream of the shower. 75
• PVC bell. • Temperature can be adjusted 34 - 60°C. Ø15
• Vertical outlet Ø 40mm (provide elbow for horizontal outlets). • Filters and non-return valves.
• 30-year warranty. • Thermal shocks are possible.
• Supplies one shower.
• 30-year warranty.
140x140
68
For more information, see page 101.
Ø 110
52
23 Ø 40
Ø 15 34 Ø15
684000 732115 / 732116
PREMIX NANO (KV 7 lpm)
Floor trap for tiled or concrete floors 684000 £81.08 Nickel-plated body M½", Ø 15mm 732115 £92.09
140 140mm Polished chrome body M½", Ø 15mm 732116 £108.39

Shower accessories 141
