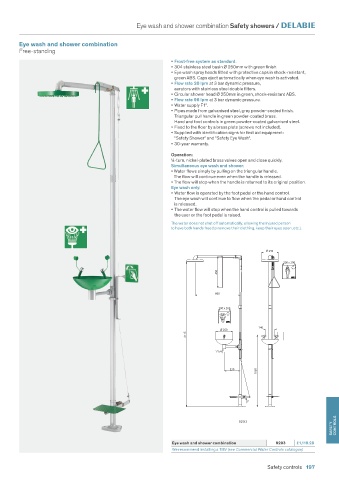

Eye wash and shower combination Safety showers /

Eye wash and shower combination
Free-standing

• Frost-free system as standard.
• 304 stainless steel basin Ø 250mm with green finish.
• Eye wash spray heads fitted with protective caps in shock-resistant,
green ABS. Caps eject automatically when eye wash is activated.
• Flow rate 20 lpm at 3 bar dynamic pressure,
aerators with stainless steel double filters.
• Circular shower head Ø 250mm in green, shock-resistant ABS.
• Flow rate 96 lpm at 3 bar dynamic pressure.
• Water supply F1".
• Pipes made from galvanised steel, grey powder-coated finish.
Triangular pull handle in green powder-coated brass.
Hand and foot controls in green powder-coated galvanised steel.
• Fixed to the floor by a brass plate (screws not included).
• Supplied with identification signs for first aid equipment:
"Safety Shower" and "Safety Eye Wash".
• 30-year warranty.
Operation:
¼-turn, nickel-plated brass valves open and close quickly.
Simultaneous eye wash and shower:
• Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
• The flow will stop when the handle is returned to its original position.
Eye wash only:
• Water flow is operated by the foot pedal or the hand control.
The eye wash will continue to flow when the pedal or hand control
is released.
• The water flow will stop when the hand control is pulled towards
the user or the foot pedal is raised.
The water does not shut off automatically, allowing the injured person
to have both hands free (to remove their clothing, keep their eyes open, etc.).

Ø 250

200 x 200
200 x 200
450

660

200 x 200

140
Ø 250
2115

1"1/4

1050
230

1"

9203
SAFETY CONTROLS

Eye wash and shower combination 9203 £1,119.28
We recommend installing a TMV (see Commercial Water Controls catalogue)

Safety controls 197
