P. 123

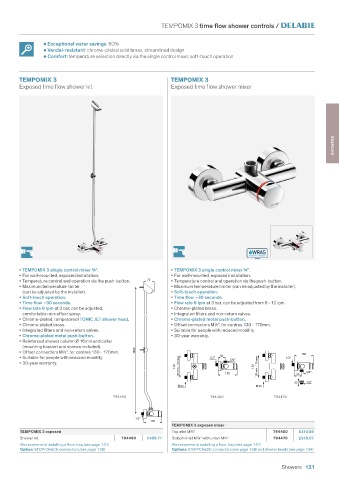

TEMPOMIX 3 time flow shower controls /


                •  Exceptional water savings: 80%
                •  Vandal-resistant: chrome-plated solid brass, streamlined design
                •  Comfort: temperature selection directly via the single control mixer, soft-touch operation



        TEMPOMIX 3                                           TEMPOMIX 3
        Exposed time flow shower kit                          Exposed time flow shower mixer










                                                                                                                      SHOWERS



























        • TEMPOMIX 3 single control mixer ¾".                • TEMPOMIX 3 single control mixer ¾".
        • For wall-mounted, exposed installation.            • For wall-mounted, exposed installation.
        • Temperature control and operation via the push-button.  75  • Temperature control and operation via the push-button.
        • Maximum temperature limiter                        • Maximum temperature limiter (can be adjusted by the installer).
         (can be adjusted by the installer).                 • Soft-touch operation.
        • Soft-touch operation.                              • Time flow ~30 seconds.
        • Time flow ~30 seconds.                              • Flow rate 6 lpm at 3 bar, can be adjusted from 6 - 12 lpm.
        • Flow rate 6 lpm at 3 bar, can be adjusted,         • Chrome-plated brass.
         comfortable rain-effect spray.                      • Integrated filters and non-return valves.
        • Chrome-plated, tamperproof TONIC JET shower head.  • Chrome-plated metal push-button.
        • Chrome-plated brass.                               • Offset connectors M½", for centres 130 - 170mm.
        • Integrated filters and non-return valves.          • Suitable for people with reduced mobility.
        • Chrome-plated metal push-button.                   • 30-year warranty.
        • Reinforced shower column Ø 16mm and collar
         (mounting bracket and screws included).
        • Offset connectors M½", for centres 130 - 170mm.  1000                                            130
        • Suitable for people with reduced mobility.                       1/2"   50  3/4"           1/2"
        • 30-year warranty.
                                                               150  130 min - 170 max  130  150  130 min - 170 max  50  3/4"


                                                                                                        23   1/2"
                                                               Ø 65                        Ø 65
                                         794450                            794400                794470



                                                 1/2"
                                                      130
                                                             TEMPOMIX 3 exposed mixer
        TEMPOMIX 3 exposed                                   Top inlet M¾"                       794400   £310.66
        Shower kit                          794450   £488.71  Bottom inlet M¾" with union M½"    794470   £318.07
        We recommend installing a floor trap (see page 131)   We recommend installing a floor trap (see page 131)
        Option: STOP/CHECK connectors (see page 136)         Options: STOP/CHECK connectors (see page 136) and shower heads (see page 134)


                                                                                                    Showers  121
