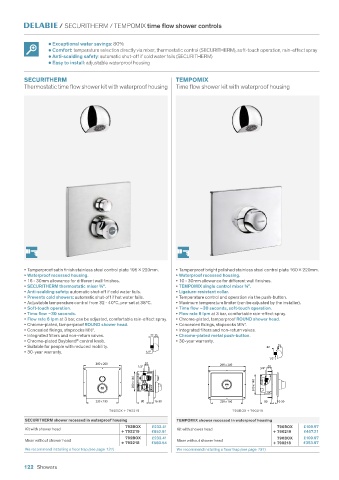

Page 124 - Water_Controls_for_Public-Commercial

/ SECURITHERM / TEMPOMIX time flow shower controls

• Exceptional water savings: 80%
• Comfort: temperature selection directly via mixer, thermostatic control (SECURITHERM), soft-touch operation, rain-effect spray
• Anti-scalding safety: automatic shut-off if cold water fails (SECURITHERM)
• Easy to install: adjustable waterproof housing

SECURITHERM TEMPOMIX
Thermostatic time flow shower kit with waterproof housing Time flow shower kit with waterproof housing

• Tamperproof satin finish stainless steel control plate 195 220mm. • Tamperproof bright polished stainless steel control plate 160 220mm.
• Waterproof recessed housing. • Waterproof recessed housing.
• 16 - 30mm allowance for different wall finishes. • 10 - 30mm allowance for different wall finishes.
• SECURITHERM thermostatic mixer ¾". • TEMPOMIX single control mixer ¾".
• Anti-scalding safety: automatic shut-off if cold water fails. • Ligature-resistant collar.
• Prevents cold showers: automatic shut-off if hot water fails. • Temperature control and operation via the push-button.
• Adjustable temperature control from 32 - 40°C, pre-set at 38°C. • Maximum temperature limiter (can be adjusted by the installer).
• Soft-touch operation. • Time flow ~30 seconds, soft-touch operation.
• Time flow ~30 seconds. • Flow rate 6 lpm at 3 bar, comfortable rain-effect spray.
• Flow rate 6 lpm at 3 bar, can be adjusted, comfortable rain-effect spray. • Chrome-plated, tamperproof ROUND shower head.
• Chrome-plated, tamperproof ROUND shower head. • Concealed fixings, stopcocks M½".
• Concealed fixings, stopcocks M½". • Integrated filters and non-return valves.
• Integrated filters and non-return valves. 22 35 • Chrome-plated metal push-button.
• Chrome-plated Bayblend control knob. • 30-year warranty.
®
• Suitable for people with reduced mobility. 22 35
• 30-year warranty. 1/2"
1/2"
260 x 200 30 260 x 200
1/2" 40
3/4"
200 x 140 200 x 140

1/2"
220 x 195 80 16-30 220 x 160 80 10-30
792BOX + 792219 790BOX + 790219
SECURITHERM shower recessed in waterproof housing TEMPOMIX shower recessed in waterproof housing
792BOX £233.41 790BOX £109.97
Kit with shower head Kit with shower head
+ 792219 £652.91 + 790219 £457.21
792BOX £233.41 790BOX £109.97
Mixer without shower head Mixer without shower head
+ 792218 £560.54 + 790218 £353.97
We recommend installing a floor trap (see page 131) We recommend installing a floor trap (see page 131)

122 Showers
