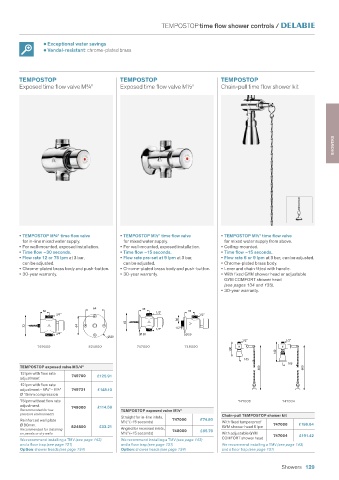

Page 131 - Water_Controls_for_Public-Commercial

TEMPOSTOP time flow shower controls /

• Exceptional water savings
• Vandal-resistant: chrome-plated brass

TEMPOSTOP TEMPOSTOP TEMPOSTOP
Exposed time flow valve M¾" Exposed time flow valve M½" Chain-pull time flow shower kit

SHOWERS

• TEMPOSTOP M¾" time flow valve • TEMPOSTOP M½" time flow valve • TEMPOSTOP M½" time flow valve
for in-line mixed water supply. for mixed water supply. for mixed water supply from above.
• For wall-mounted, exposed installation. • For wall-mounted, exposed installation. • Ceiling-mounted.
• Time flow ~30 seconds. • Time flow ~15 seconds. • Time flow ~15 seconds.
• Flow rate 12 or 75 lpm at 3 bar, • Flow rate pre-set at 9 lpm at 3 bar, • Flow rate 6 or 9 lpm at 3 bar, can be adjusted.
can be adjusted. can be adjusted. • Chrome-plated brass body.
• Chrome-plated brass body and push-button. • Chrome-plated brass body and push-button. • Lever and chain fitted with handle.
• 30-year warranty. • 30-year warranty. • With fixed GYM shower head or adjustable
GYM COMFORT shower head
(see pages 134 and 135).
• 30-year warranty.

64 35
30 1/2" 35
3/4" 1/2"
30
62
72 64
1/2" 1/2"
3/4" Ø 50 Ø 50
Ø 80
1/2" 1/2"
749000 824800 747000 748000
100 140
105
105
TEMPOSTOP exposed valve M3/4" 600 600
12 lpm with flow rate 749700
adjustment £125.91
12 lpm with flow rate
adjustment - M¾" - M½" 749721 £148.10
Ø 15mm compression
75 lpm without flow rate 747006 747004
adjustment. 749000 £114.59
Recommended for low TEMPOSTOP exposed valve M½"
pressure environments Chain-pull TEMPOSTOP shower kit
Straight for in-line inlets,
Reinforced wall plate M½" (~15 seconds) 747000 £74.80 With fixed tamperproof
Ø 80mm. 824800 £33.21 GYM shower head 6 lpm 747006 £186.64
Recommended for installing Angled for recessed inlets, 748000 £85.76
on panels or dry walls M½" (~15 seconds) With adjustable GYM 747004 £191.42
COMFORT shower head
We recommend installing a TMV (see page 143) We recommend installing a TMV (see page 143)
and a floor trap (see page 131) and a floor trap (see page 131) We recommend installing a TMV (see page 143)
Option: shower heads (see page 134) Option: shower heads (see page 134) and a floor trap (see page 131)
Showers 129
