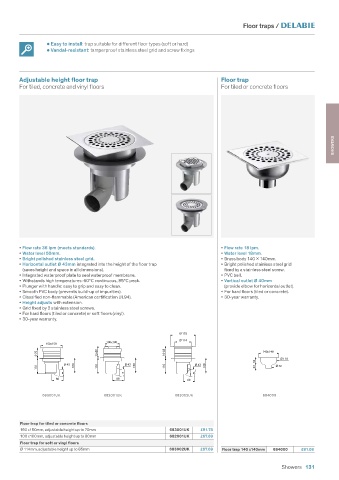

Floor traps /

• Easy to install: trap suitable for different floor types (soft or hard)
• Vandal-resistant: tamperproof stainless steel grid and screw fixings

Adjustable height floor trap Floor trap
For tiled, concrete and vinyl floors For tiled or concrete floors

SHOWERS

• Flow rate 36 lpm (meets standards). • Flow rate 18 lpm.
• Water level 50mm. • Water level 18mm.
• Bright polished stainless steel grid. • Brass body 140 140mm.
• Horizontal outlet Ø 43mm integrated into the height of the floor trap • Bright polished stainless steel grid
(saves height and space in all dimensions). fixed by a stainless steel screw.
• Integrated waterproof plate to seal waterproof membrane. • PVC bell.
• Withstands high temperatures: 60°C continuous, 85°C peak. • Vertical outlet Ø 40mm
• Plunger with handle: easy to grip and easy to clean. (provide elbow for horizontal outlet).
• Smooth PVC body (prevents build-up of impurities). • For hard floors (tiled or concrete).
• Classified non-flammable (American certification UL94). • 30-year warranty.
• Height adjusts with extension.
• Grid fixed by 2 stainless steel screws.
• For hard floors (tiled or concrete) or soft floors (vinyl).
• 30-year warranty.

Ø 175
Ø 114
100x100
150x150
5-70 15-80 10-85 140x140
Ø 110
52
Ø 43 100 Ø 43 100 Ø 43 100
110 110 110 23 Ø 40
80 80 80

683001UK 682001UK 683002UK 684000

Floor trap for tiled or concrete floors
150 x150mm, adjustable height up to 70mm 683001UK £91.78
100 x100mm, adjustable height up to 80mm 682001UK £67.69
Floor trap for soft or vinyl floors
Ø 114mm, adjustable height up to 85mm 683002UK £67.69 Floor trap 140 x140mm 684000 £81.08

Showers 131
