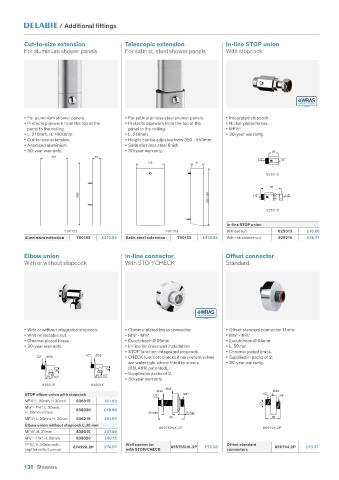

Page 138 - Water_Controls_for_Public-Commercial

/ Additional fittings

Cut-to-size extension Telescopic extension In-line STOP union
For aluminium shower panels For satin st. steel shower panels With stopcock

• For aluminium shower panels. • For satin stainless steel shower panels. • Integrated stopcock.
• Protects pipework from the top of the • Protects pipework from the top of the • Nickel-plated brass.
panel to the ceiling. panel to the ceiling. • MF½".
• L. 210mm, H. 1000mm. • L. 218mm. • 30-year warranty.
• Cut-to-size extension. • Height can be adjusted from 350 - 550mm.
• Anodised aluminium. • Satin stainless steel finish.
• 30-year warranty. • 30-year warranty. 35
210 65
1/2" 1/2"
218 97
825015

70
1000 350 - 550 1/2" 1/2"

825215

In-line STOP union
790152 790153 Without nut 825015 £16.06
Aluminium extension 790152 £210.84 Satin steel extension 790153 £375.25 With retractable nut 825215 £36.71

Elbow union In-line connector Offset connector
With or without stopcock With STOP/CHECK Standard

• With or without integrated stopcock. • Chrome-plated brass connector. • Offset standard connector 11mm.
• With retractable nut. • M½" - M¾". • M½" - M¾".
• Chrome-plated brass. • Escutcheon Ø 65mm. • Escutcheon Ø 64mm.
• 30-year warranty. • In-line for cross wall installation. • L. 50mm.
• STOP function: integrated stopcock. • Chrome-plated brass.
1/2" Ø 50 1/2" Ø 50 • CHECK function: checks if non-return valves • Supplied in packs of 2.
are watertight where fitted to mixers • 30-year warranty.
30 27 (DELABIE patented).
30 1/2" 30 1/2" • Supplied in packs of 2.
• 30-year warranty.
836015 838015
Ø 65
Ø 44 Ø 64
STOP elbow union with stopcock 1/2" 3/4" 1/2" 3/4"
MF½", L. 30mm, H. 30mm 836015 £51.63
11
M½" - F¾", L. 30mm, 836020 £49.96
H. 30mm ±2mm 35 max 15 max
MF½", L. 20mm, H. 30mm 836215 £51.63 90 50
Elbow union without stopcock L.30 mm
855755UK.2P 856794.2P
MF½", H. 27mm 838015 £37.86
M½" - F¾", H. 29mm 838020 £40.15
FF¾", H. 20mm with 874220.2P £74.57 Wall connector 855755UK.2P £72.28 Offset standard 856794.2P £33.37
captive nuts (2 pieces) with STOP/CHECK connectors

136 Showers
