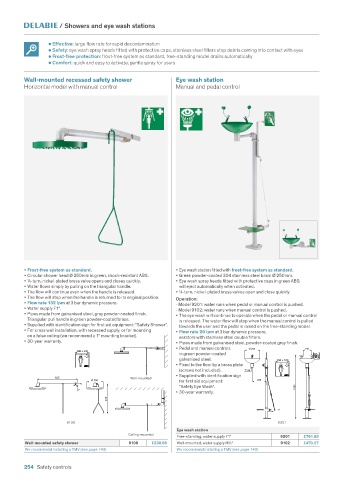

Page 256 - water-controls-for-public-and-commercial-places

/ Showers and eye wash stations

• Effective: large flow rate for rapid decontamination
• Safety: eye wash spray heads fitted with protective caps, stainless steel filters stop debris coming into contact with eyes
• Frost-free protection: frost-free system as standard, free-standing model drains automatically
• Comfort: quick and easy to activate, gentle spray for users

Wall-mounted recessed safety shower Eye wash station
Horizontal model with manual control Manual and pedal control

• Frost-free system as standard. • Eye wash station fitted with frost-free system as standard.
• Circular shower head Ø 250mm in green, shock-resistant ABS. • Green powder-coated 304 stainless steel basin Ø 250mm.
• ¼-turn, nickel-plated brass valve opens and closes quickly. • Eye wash spray heads fitted with protective caps in green ABS;
• Water flows simply by pulling on the triangular handle. will eject automatically when activated.
• The flow will continue even when the handle is released. • ¼-turn, nickel-plated brass valves open and close quickly.
• The flow will stop when the handle is returned to its original position. Operation:
• Flow rate 132 lpm at 3 bar dynamic pressure. - Model 9201: water runs when pedal or manual control is pushed.
• Water supply F1". - Model 9102: water runs when manual control is pushed.
• Pipes made from galvanised steel, grey powder-coated finish. • The eye wash will continue to operate when the pedal or manual control
Triangular pull handle in green powder-coated brass. is released. The water flow will stop when the manual control is pulled
• Supplied with identification sign for first aid equipment: "Safety Shower". towards the user and the pedal is raised on the free-standing model.
• For cross wall installation, with recessed supply, or for mounting • Flow rate 20 lpm at 3 bar dynamic pressure,
on a false ceiling (we recommend a 1" mounting bracket). aerators with stainless steel double filters.
• 30-year warranty. • Pipes made from galvanised steel, powder-coated grey finish.
• Pedal and manual controls Ø 250 140
200 x 200
in green powder-coated
galvanised steel. 200 x 200
• Fixed to the floor by a brass plate 200 x 200
(screws not included). 1"1/4
• Supplied with identification sign
625 Wall-mounted
Ø 250 for first aid equipment: 230
"Safety Eye Wash". 1050
1"
• 30-year warranty.
450
1"
9108 9201
Eye wash station
Ceiling-mounted
Free-standing, water supply F1" 9201 £761.89
Wall-mounted safety shower 9108 £230.66 Wall-mounted, water supply M½" 9102 £470.27
We recommend installing a TMV (see page 143) We recommend installing a TMV (see page 143)

254 Safety controls
