Unit with 3 functions for installation behind a mirror

Ref. 510205I
Electronic tap, soap dispenser and paper towel dispenser
Unit with 3 functions for installation behind a mirror

Presentation

DESCRIPTION

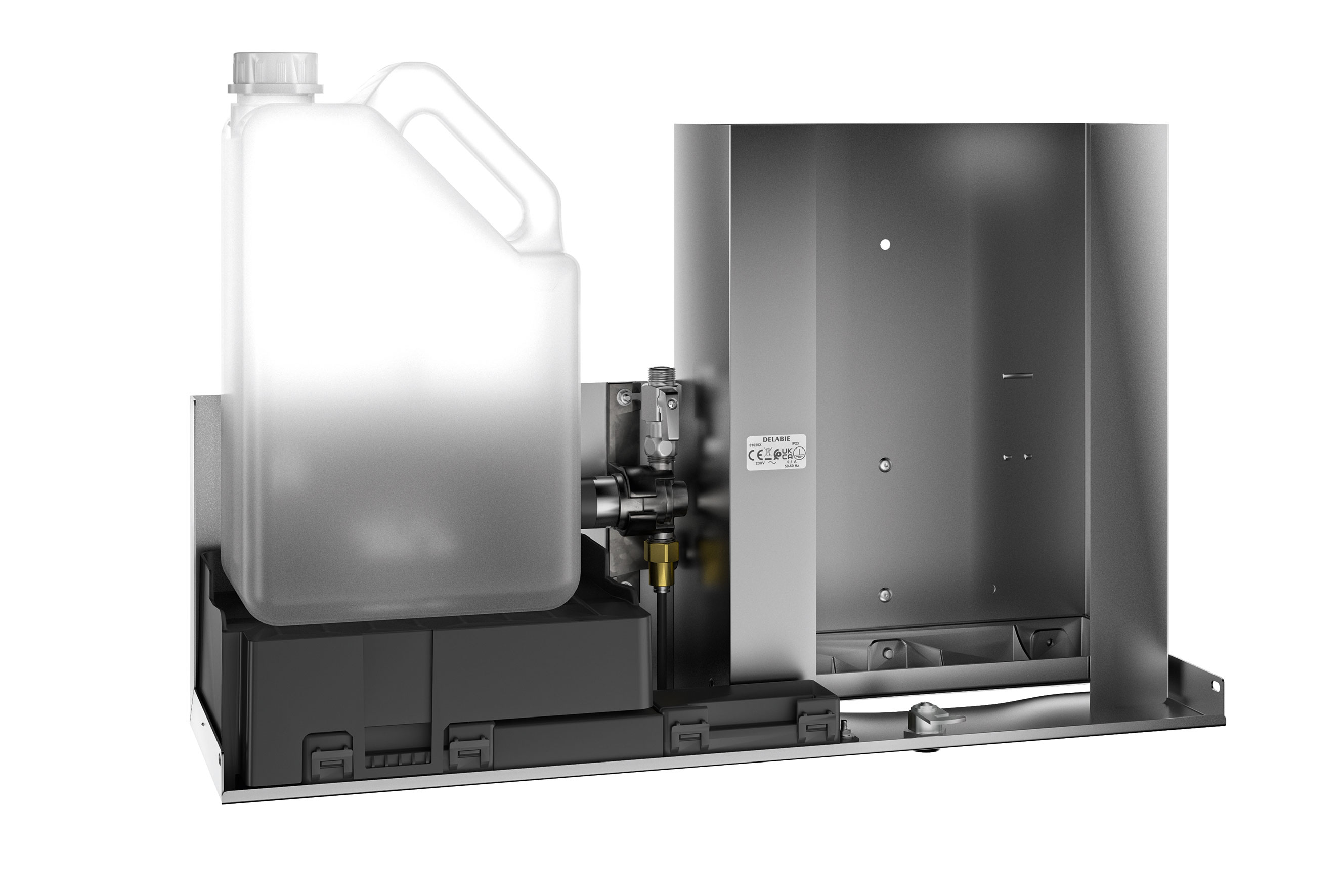

Unit with 3 functions for installation behind a mirror

Ref. 510205I
Unit with 3 functions: electronic soap dispenser, tap and paper towel dispenser.
Touch-free for improved hygiene: soap dispenser and tap are activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- Fitted into a cabinet. Fixings on the sides and the back. 304 stainless steel support, 1.2 mm thick.
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Water connection in M3/8"
- Supplied with stainless steel screws for concrete or reinforced wood.
Unit with 3 functions:
Automatic soap dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Electronic basin tap*:
- Reduced stagnation solenoid valve.
- Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
- Scale-resistant flow straightener.
- Duty flush (~60 seconds every 24 hours after the last use).
- Stopcock.
Paper towel dispenser:
- Dispenses one sheet at a time.
- Dimensions: 120 x 275 x 360mm.
- Contents: 500 sheets.
Supplied with self-adhesive pictograms to indicate the location of the different functions on the mirror/cabinet: soap, water and paper towels.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Dimensions: 561 x 183 x 381mm.
Weight: 5 kg.
Mirror cabinet with 30-year warranty.
CE marked.

* We recommend a PREMIX mixer.

2024 UK public price excluding VAT: £953.75

ADVANTAGES

Universel

3 functions

Maintenance aisée - Installation aisée

Easy installation into a cabinet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: touch-free

Secteur

One single electrical supply for all elements

Characteristics

TECHNICAL CHARACTERISTICS

Unit with 3 functions for installation behind a mirror

Ref. 510205I
Supply Mains: 230V / 50-60Hz recessed
Connector M3/8"
Technology Electronic
Height 381mm
Depth 183mm
Width 561mm
Flow rate Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm
Thickness 1.2mm thick support
Finish 304 stainless steel support
Certificates Logo CE Logo WRAS
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Unit with 3 functions for installation behind a mirror

Ref. 510205I

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Unit with 3 functions for installation behind a mirror

Ref. 510205I
1. 222429
Service key
2. 495606
Solenoid valve
3. SER5102V
Lock with key

VARIANTS

510203I With hand dryer £1,204.74 excl. VAT
