Deck-mounted single hole mixer - 20 lpm

Ref. 2506T3
Swivelling tubular over spout L. 300mm H. 315mm
See variants See variants
Deck-mounted single hole mixer - 20 lpm

Presentation

DESCRIPTION

Deck-mounted single hole mixer - 20 lpm

Ref. 2506T3
Deck-mounted single hole mixer with swivelling, tubular spout H. 315mm L. 300mm.
Star-shaped flow straightener.
Ceramic cartridge Ø 35mm.
Flow rate 20 lpm at 3 bar.
Spout with smooth interior.
Slimline control lever.
Chrome-plated body and spout with reinforced fixing via two stainless steel rods and back-nuts.
Without pop-up waste.
Supplied with stainless steel braided PEX flexibles F3/8".
30-year warranty.

2025 UK public price excluding VAT: £274.72

ADVANTAGES

Endurance - Fiabilité

Chrome-plated body

Remplissage rapide

Flow rate 20 lpm

Corps à intérieur lisse

Body/spout with smooth interior reduces bacteria

Characteristics

TECHNICAL CHARACTERISTICS

Deck-mounted single hole mixer - 20 lpm

Ref. 2506T3
Connector F3/8"
Height 380mm
Drop height 315mm
Spout length 300mm
Flow rate 20 lpm
Finish Chrome-plated brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability
Deck-mounted single hole mixer - 20 lpm
Ref. 2506T3

Downloads

DOWNLOADS

Deck-mounted single hole mixer - 20 lpm

Ref. 2506T3

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

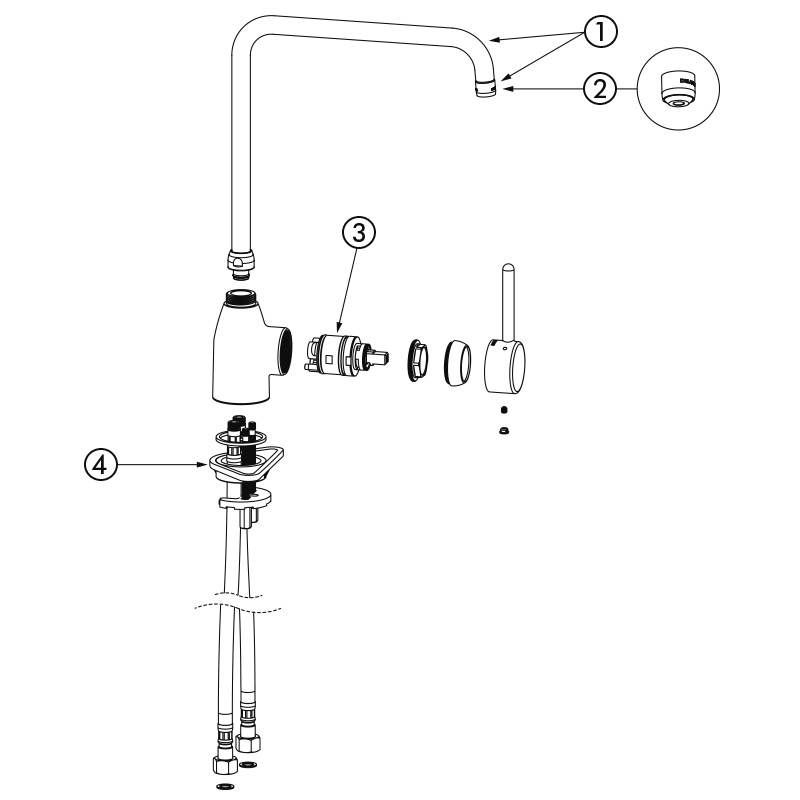

SPARE PARTS

Deck-mounted single hole mixer - 20 lpm

Ref. 2506T3
1. 963300245F
Swivelling, tubular spout
2. 921022.2P
Star-shaped flow straightener
3. NS262
Ø35mm ceramic cartridge
4. 2510SES
Locking kit
5. 256P
Fixing plate

VARIANTS

2506T2 L. 200mm, H. 220mm, 5 lpm at 3 bar £257.76 excl. VAT
25061T1 Slimline lever - no pop-up waste £251.89 excl. VAT
2506T1 Slimline lever - no pop-up waste £296.52 excl. VAT
