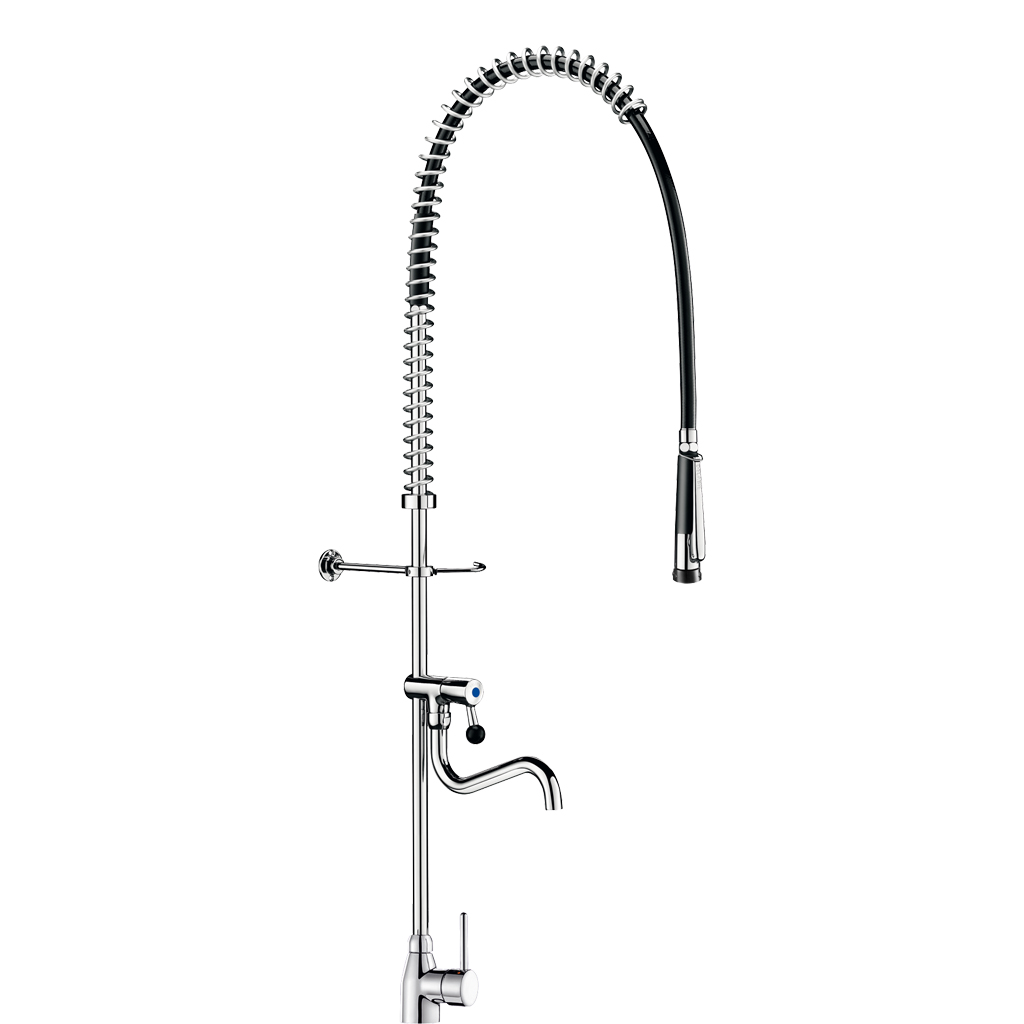

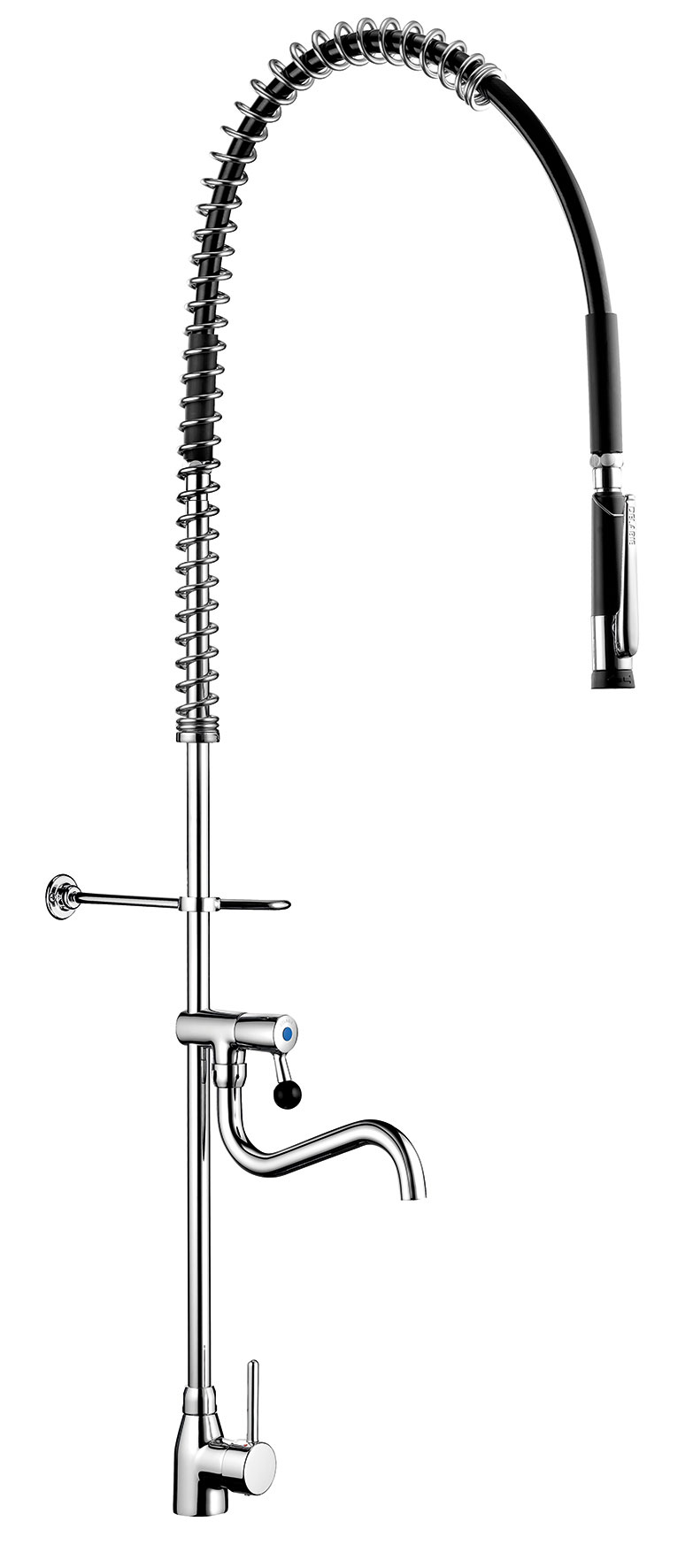

Pre-rinse set with mixer

Ref. 5625
With bib tap and swivelling telescopic spout
Pre-rinse set with mixer

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. 5625
Complete pre-rinse set with bib tap.
Single hole deck-mounted mixer with slimline control lever.
Suitable for intensive use in professional kitchens.
Supplied with F3/8" flexible hoses and non-return valves.
Bib tap with swivelling, tubular spout L. 200mm.
- 16 lpm full flow rate achieved within 90° turn.
- valve head with reinforced mechanism and ergonomic control.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

2024 UK public price excluding VAT: £913.20

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic control, swivelling spout

Remplissage rapide

Rapid-fill: full flow rate within the first 90°

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Characteristics

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 5625
Connector F3/8"
Height 1105 - 1225mm
Drop height 340 - 580mm
Flow rate Bib tap 16 lpm; 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year
Repairability
Pre-rinse set with mixer
Ref. 5625

Downloads

DOWNLOADS

Combiné de prélavage monotrou avec mitigeur

Ref. 5625

To download one or several documents linked to this product, please select the type of file you require :

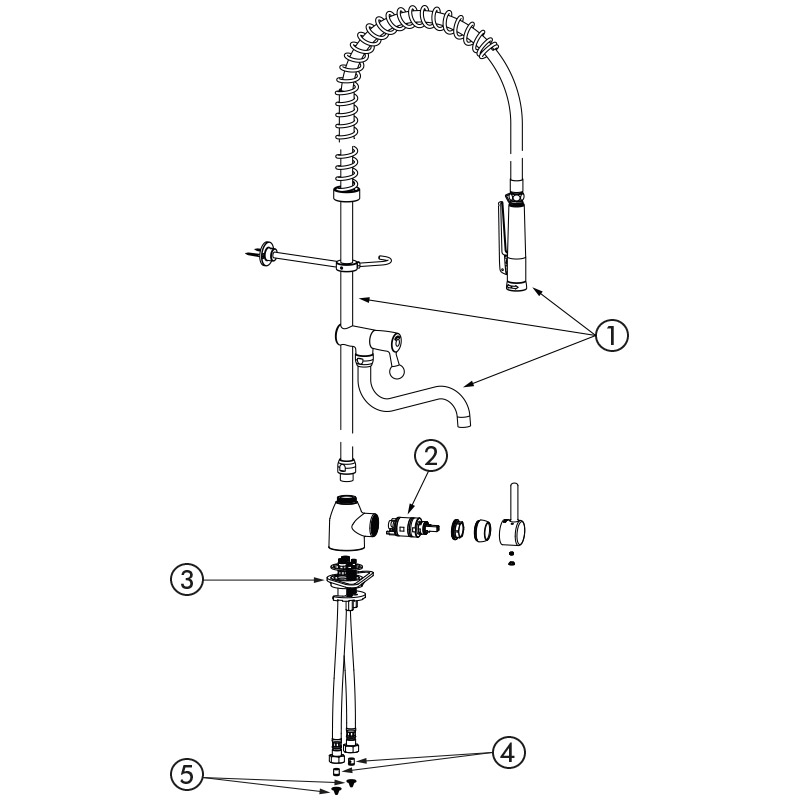

Spare parts

SPARE PARTS

Pre-rinse set with mixer

Ref. 5625
1. 433722
Black pre-rinse set with no valve
2. NS262
Ø35mm ceramic cartridge
3. 256P
Fixing plate
4. 2510SES
Locking kit
5. 900010
Non-return valve
6. 60438.10P
Conical filter

VARIANTS

5825 Hand spray with scale-resistant nipples - With bib tap & tubular spout £955.59 excl. VAT
5826 Hand spray with scale-resistant nipples - Without bib tap £769.25 excl. VAT
5626 Hand spray with scale-resistant nozzle - Without bib tap £726.88 excl. VAT
