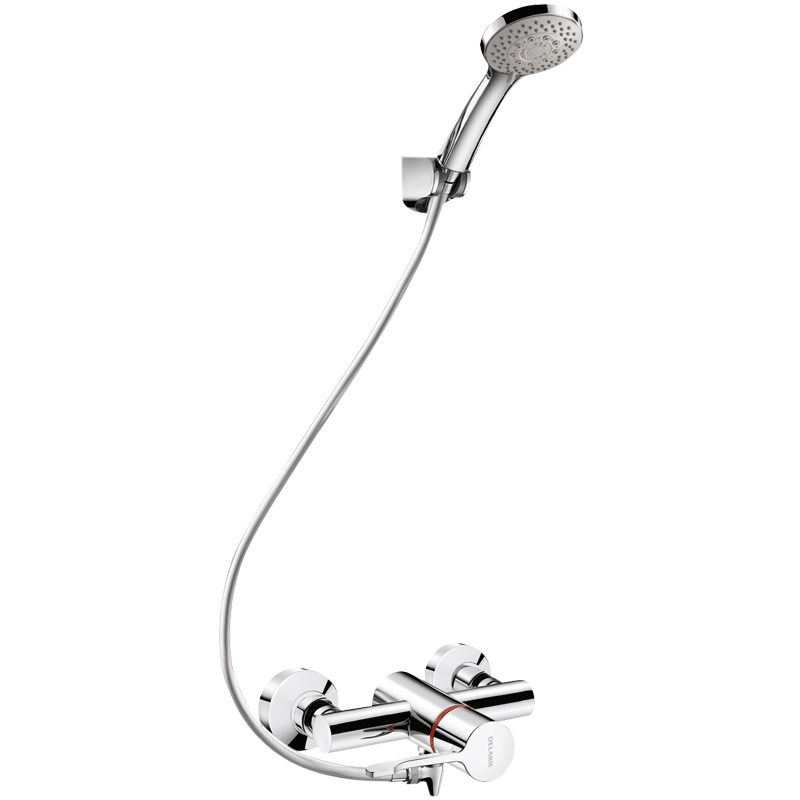

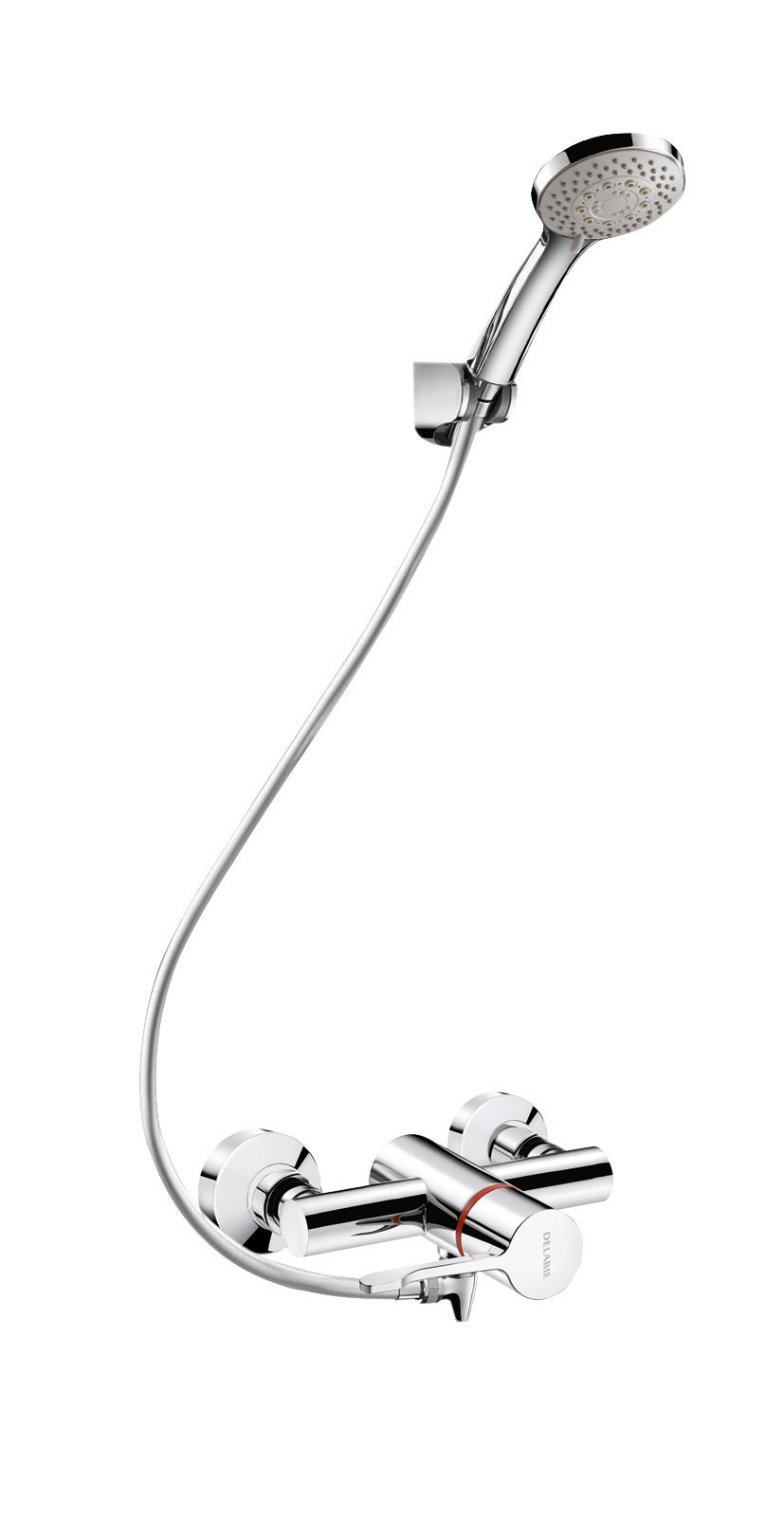

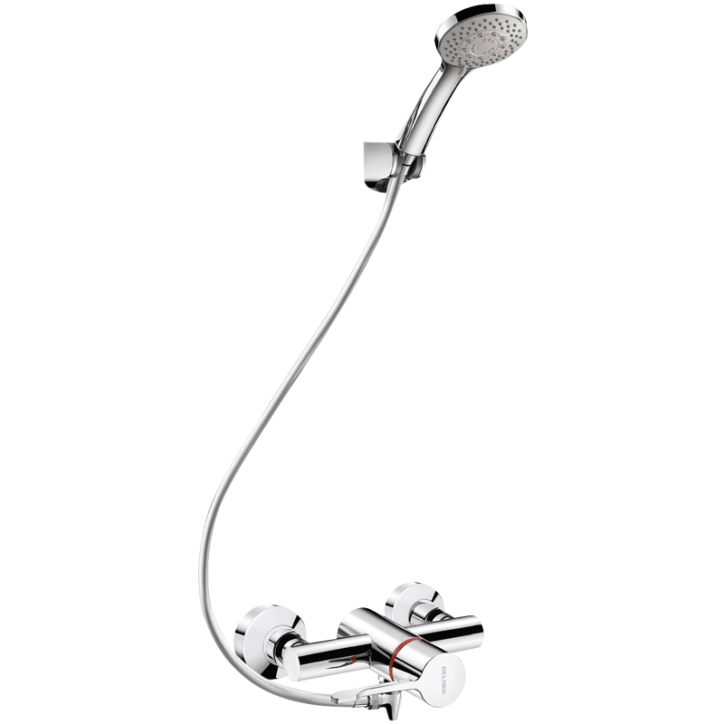

Auto-draining shower kit with thermostatic mixer

Ref. H9630SHYG
Thermostatic sequential mixer with no non-return valves
Auto-draining shower kit with thermostatic mixer

Presentation

DESCRIPTION

Auto-draining shower kit with thermostatic mixer

Ref. H9630SHYG
SECURITHERM thermostatic sequential shower kit with auto-draining device.
• Mixer with scale-resistant, thermostatic sequential cartridge:
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.

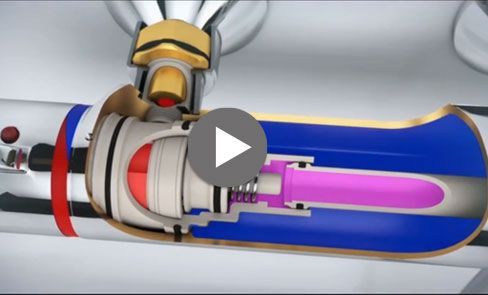

Securitouch thermal insulation prevents burns.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome plated brass body and Hygiene lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with 2 standard offset M1/2" M3/4" connectors.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
• Shower head (ref. 813) with flexible shower hose (ref. 836T3) and adjustable, chrome-plated wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £465.20

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

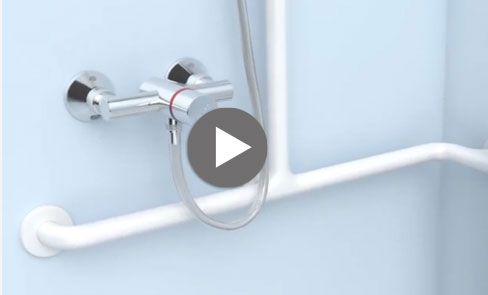

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no non-return valves

Sécurité anti-brûlure

SECURITHERM: optimal anti-scalding safety

Confort - Ergonomie - Déclenchement souple

Thermostatic: complete temperature stability

Characteristics

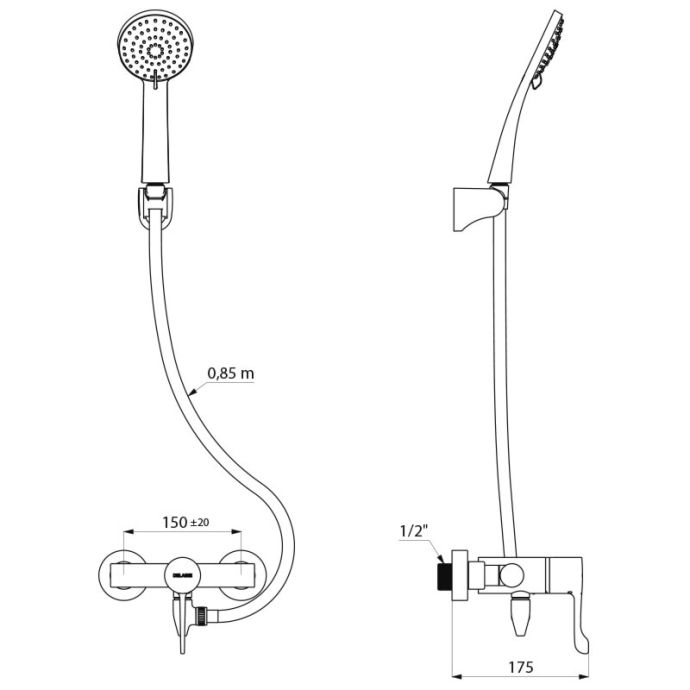

TECHNICAL CHARACTERISTICS

Auto-draining shower kit with thermostatic mixer

Ref. H9630SHYG
Connector M1/2"
Technology SECURITHERM single control thermostatic mixer, Securitouch
Depth 175mm
Length 184mm
Flow rate 9 lpm
Temperature limiter 39°C
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Ensemble de douche avec mitigeur thermostatique séquentiel SECURITHERM

Ref. H9630SHYG

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

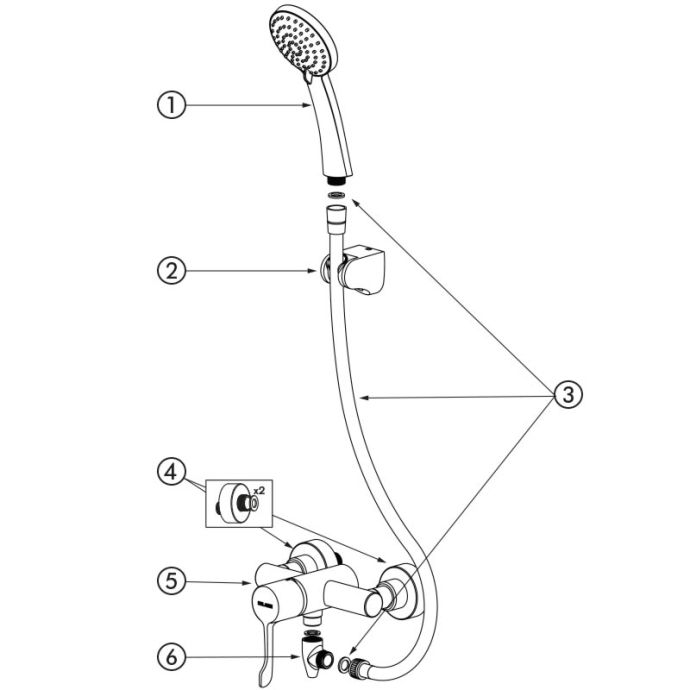

SPARE PARTS

Auto-draining shower kit with thermostatic mixer

Ref. H9630SHYG

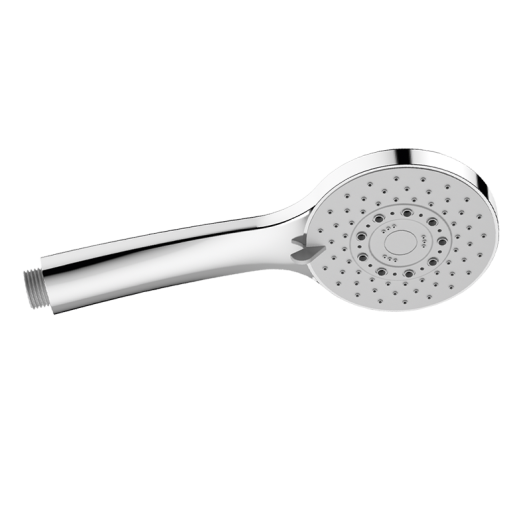

1. 813
Chrome-plated shower head with 5 jets, M1/2"
2. 845
Wall-mounted tilting support for shower heads
3. 836T3
SILVER flexible shower hose
4. 856794.2P
Offset union
5. 880
Auto-draining device

VARIANTS

H9630HYG Offset STOP/CHECK connectors £496.97 excl. VAT
