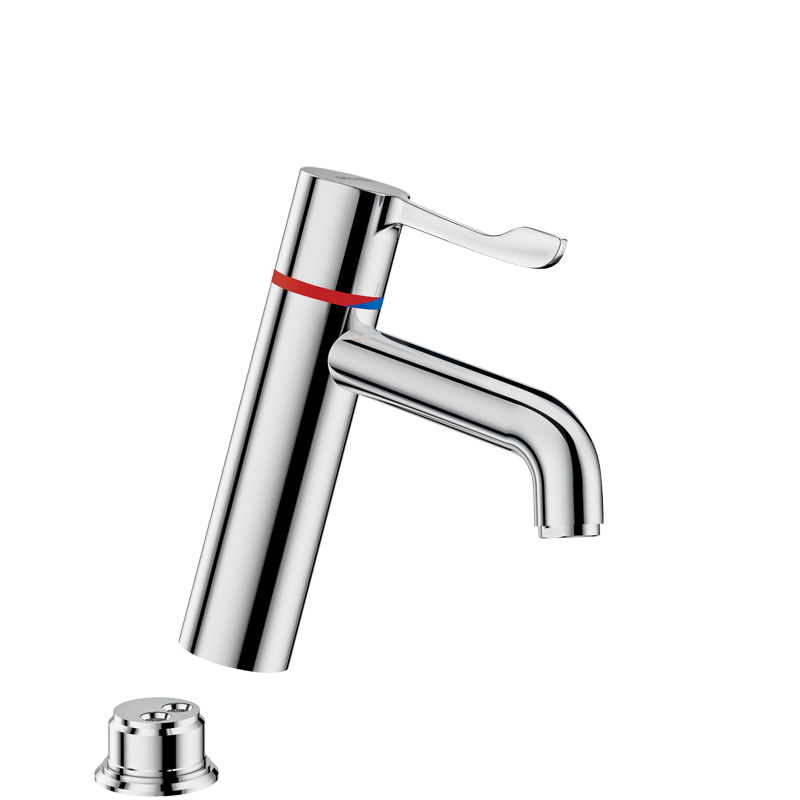

SECURITHERM BIOCLIP thermostatic basin mixer
Ref. H9605610L
Single hole, sequential thermostatic mixer H. 95mm L. 120mm
Single hole, sequential thermostatic mixer H. 95mm L. 120mm
DESCRIPTION
SECURITHERM BIOCLIP thermostatic basin mixer
Ref. H9605610LDeck-mounted SECURITHERM thermostatic basin mixer.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.

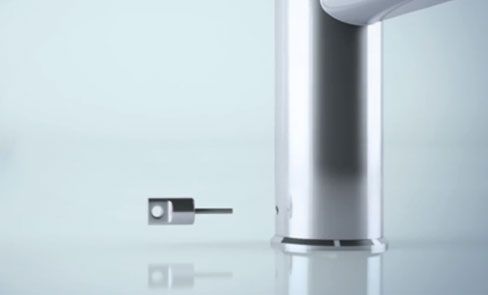

BIOCLIP: can be easily removed for cleaning and disinfection.
Anti-scalding failsafe: shuts off automatically if the cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Single hole mixer with straight spout, H. 95mm L. 120mm, fitted with a hygienic flow straightener, with no build-up of impurities and withstands thermal shocks.
Scale-resistant sequential thermostatic cartridge for single control adjustment of flow rate and temperature.
Adjustable temperature from cold water up to 40°C with maximum temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Spout and body with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
No manual contact thanks to Hygiene control lever L. 100mm.
Without pop-up waste.
Supplied with copper tails and chrome-plated brass stopcocks.
Fixing reinforced via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.
Also available with PEX flexibles.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
BIOCLIP: can be easily removed for cleaning and disinfection.
Anti-scalding failsafe: shuts off automatically if the cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Single hole mixer with straight spout, H. 95mm L. 120mm, fitted with a hygienic flow straightener, with no build-up of impurities and withstands thermal shocks.
Scale-resistant sequential thermostatic cartridge for single control adjustment of flow rate and temperature.
Adjustable temperature from cold water up to 40°C with maximum temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Spout and body with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
No manual contact thanks to Hygiene control lever L. 100mm.
Without pop-up waste.
Supplied with copper tails and chrome-plated brass stopcocks.
Fixing reinforced via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.
Also available with PEX flexibles.
2024 UK public price excluding VAT: £474.46
ADVANTAGES
Maximum hygiene: no non-return valves
Hygiene: can be removed for internal cleaning
SECURITHERM: anti-scalding safety
Sequential: opens/closes with cold water

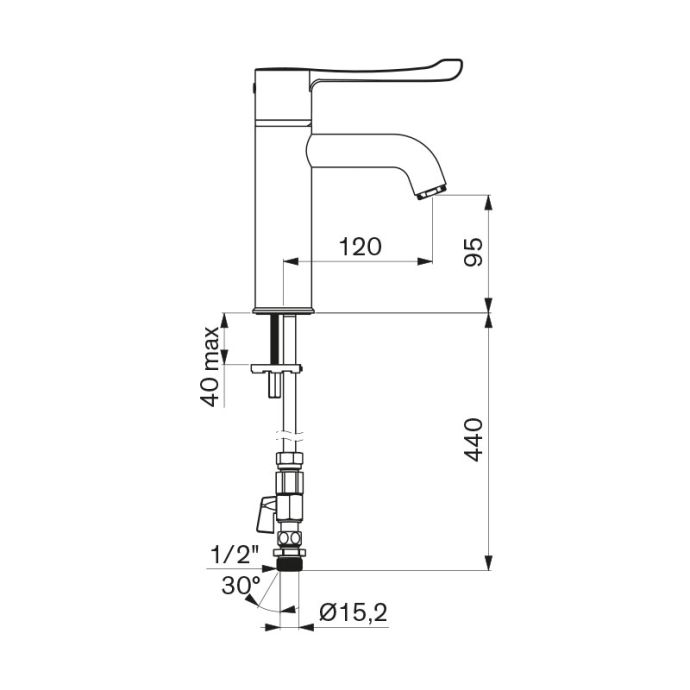

TECHNICAL CHARACTERISTICS
SECURITHERM BIOCLIP thermostatic basin mixer
Ref. H9605610LConnector | M1/2" Ø 15mm |
Technology | SECURITHERM BIOCLIP sequential Securitouch |
Drop height | 95mm |
Spout length | 120mm |
Flow rate | 5 lpm at 3 bar |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

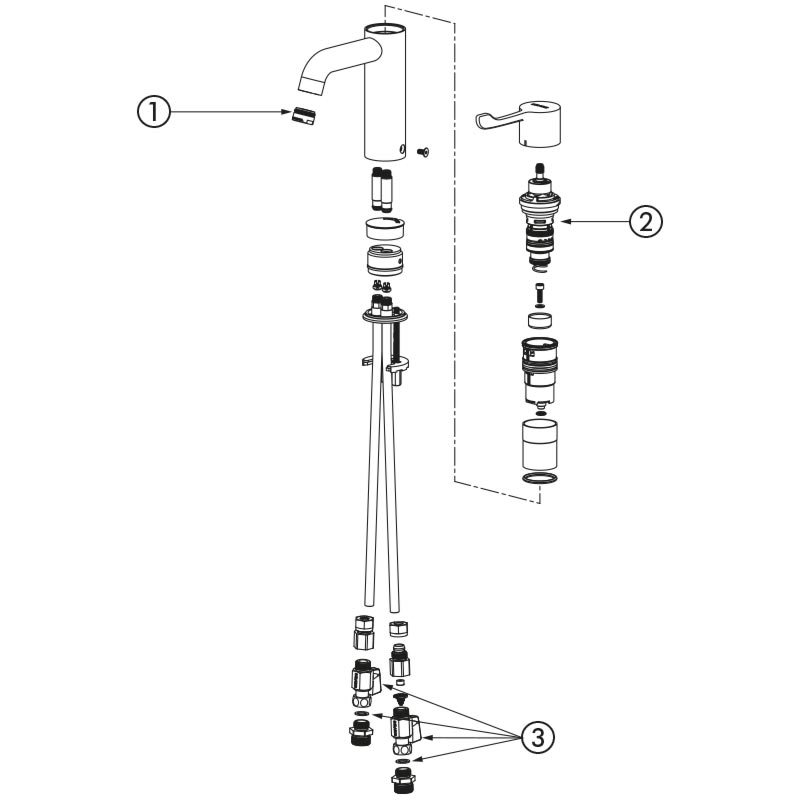

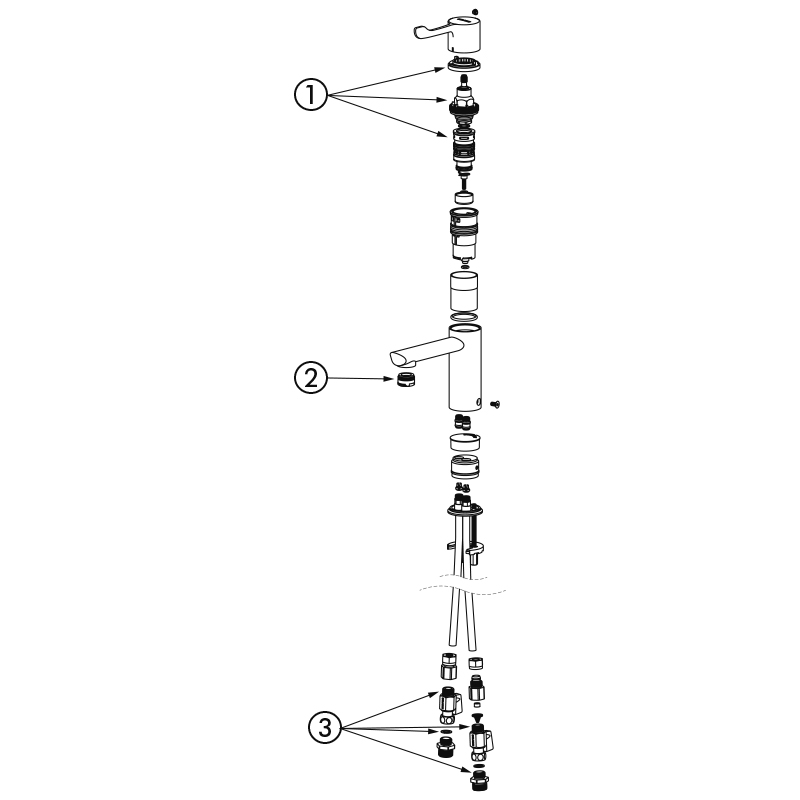

SPARE PARTS
SECURITHERM BIOCLIP thermostatic basin mixer
Ref. H9605610L
After 11/2022
1. | 921024.2P |
|
Star-shaped flow straightener |
2. | N960 |
|
Thermostatic cartridge for basin |
3. | 96SEF |
|
Locking kit |
4. | 825212 |
|
In-line STOP union |
Before 11/2022
1. | 921024.2P |
|
Star-shaped flow straightener |
2. | N960 |
|
Thermostatic cartridge for basin |
3. | 96SEF |
|
Locking kit |
4. | 825212 |
|
In-line STOP union |
VARIANTS
H9605 | Hygiene lever L. 146mm - Flexibles with stopcocks | £438.36 excl. VAT | |
---|---|---|---|
H960515 | Hygiene lever L.146mm - Flexibles & stopcocks, Ø15mm | £440.94 excl. VAT | |
H9615 | Hygiene lever L. 146mm - on pillars | £643.36 excl. VAT | |
H9605610 | Hygiene lever L.146mm - Copper tails | £477.03 excl. VAT | |
H960515L | Hygiene lever L. 146mm - Flexibles with stopcocks, Ø 15mm | £438.36 excl. VAT |
VARIANTS
H9605 | Hygiene lever L. 146mm - Flexibles with stopcocks | £438.36 excl. VAT | |
---|---|---|---|
H960515 | Hygiene lever L.146mm - Flexibles & stopcocks, Ø15mm | £440.94 excl. VAT | |
H9615 | Hygiene lever L. 146mm - on pillars | £643.36 excl. VAT | |
H9605610 | Hygiene lever L.146mm - Copper tails | £477.03 excl. VAT | |
H960515L | Hygiene lever L. 146mm - Flexibles with stopcocks, Ø 15mm | £438.36 excl. VAT |
