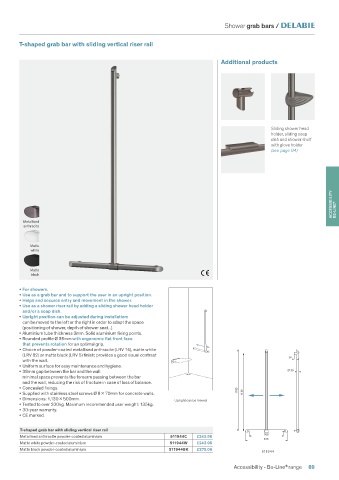

Page 91 - Accessibility-Hygienic-Accessories

Shower grab bars /

T-shaped grab bar with sliding vertical riser rail

Additional products

Sliding shower head
holder, sliding soap
dish and shower shelf
with glove holder
(see page 94)

ACCESSIBILITY BE-LINE ®

Metallised
anthracite

Matte
white

Matte
black

• For showers.
• Use as a grab bar and to support the user in an upright position.
• Helps and secures entry and movement in the shower.
• Use as a shower riser rail by adding a sliding shower head holder
and/or a soap dish.
• Upright position can be adjusted during installation:
can be moved to the left or the right in order to adapt the space
(positioning of shower, depth of shower seat...).
• Aluminium tube thickness 3mm. Solid aluminium fixing points.
• Rounded profile Ø 35mm with ergonomic flat front face
that prevents rotation for an optimal grip.
• Choice of powder-coated metallised anthracite (LRV 14), matte white
(LRV 82) or matte black (LRV 5) finish; provides a good visual contrast
38
with the wall.
• Uniform surface for easy maintenance and hygiene.
• 38mm gap between the bar and the wall: Ø 35
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings.
• Supplied with stainless steel screws Ø 8 70mm for concrete walls. 1185 1130
• Dimensions: 1,130 500mm. Upright can be moved
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty.
• CE marked.

T-shaped grab bar with sliding vertical riser rail
500
Metallised anthracite powder-coated aluminium 511944C £243.98
615
Matte white powder-coated aluminium 511944W £243.98
Matte black powder-coated aluminium 511944BK £275.06
511944
Accessibility - Be-Line range 89
®
