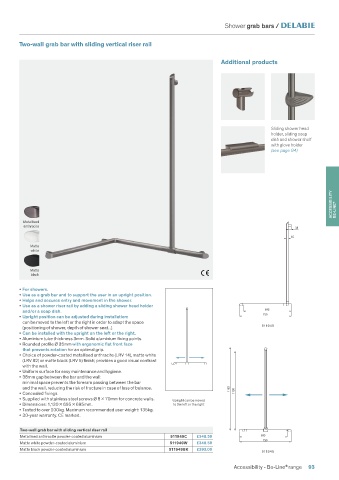

Page 95 - Accessibility-Hygienic-Accessories

Shower grab bars /

Two-wall grab bar with sliding vertical riser rail

Additional products

Sliding shower head
holder, sliding soap
dish and shower shelf
with glove holder
(see page 94)

ACCESSIBILITY BE-LINE ®

Metallised
anthracite 38

35
Matte
white

Matte
black

• For showers.
• Use as a grab bar and to support the user in an upright position.
• Helps and secures entry and movement in the shower.
• Use as a shower riser rail by adding a sliding shower head holder
695
and/or a soap dish.
750
• Upright position can be adjusted during installation:
can be moved to the left or the right in order to adapt the space
(positioning of shower, depth of shower seat...). 511949
• Can be installed with the upright on the left or the right.
• Aluminium tube thickness 3mm. Solid aluminium fixing points.
• Rounded profile Ø 35mm with ergonomic flat front face
that prevents rotation for an optimal grip.
• Choice of powder-coated metallised anthracite (LRV 14), matte white
(LRV 82) or matte black (LRV 5) finish; provides a good visual contrast
with the wall.
• Uniform surface for easy maintenance and hygiene.
• 38mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance. 1185
• Concealed fixings. 1130
• Supplied with stainless steel screws Ø 8 70mm for concrete walls. Upright can be moved
• Dimensions: 1,130 695 695mm. to the left or the right
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty. CE marked.

Two-wall grab bar with sliding vertical riser rail
Metallised anthracite powder-coated aluminium 511949C £348.59 695
750
Matte white powder-coated aluminium 511949W £348.59
Matte black powder-coated aluminium 511949BK £393.00
511949

Accessibility - Be-Line range 93
®
