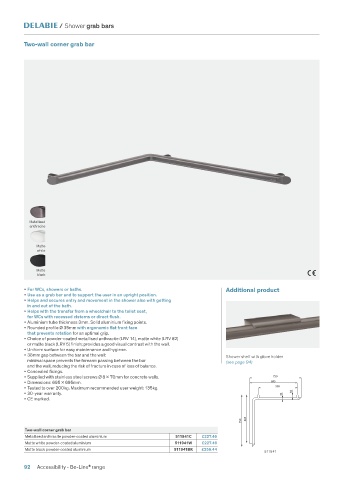

Page 94 - Accessibility-Hygienic-Accessories

/ Shower grab bars

Two-wall corner grab bar

Metallised
anthracite

Matte
white

Matte
black

• For WCs, showers or baths. Additional product
• Use as a grab bar and to support the user in an upright position.
• Helps and secures entry and movement in the shower also with getting
in and out of the bath.
• Helps with the transfer from a wheelchair to the toilet seat,
for WCs with recessed cisterns or direct flush.
• Aluminium tube thickness 3mm. Solid aluminium fixing points.
• Rounded profile Ø 35mm with ergonomic flat front face
that prevents rotation for an optimal grip.
• Choice of powder-coated metallised anthracite (LRV 14), matte white (LRV 82)
or matte black (LRV 5) finish; provides a good visual contrast with the wall.
• Uniform surface for easy maintenance and hygiene.
• 38mm gap between the bar and the wall: Shower shelf with glove holder
minimal space prevents the forearm passing between the bar (see page 94)
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings.
• Supplied with stainless steel screws Ø 8 70mm for concrete walls. 750
• Dimensions: 695 695mm. 695
• Tested to over 200kg. Maximum recommended user weight: 135kg. 565
• 30-year warranty. 35 38
• CE marked.

750 695
Two-wall corner grab bar
Metallised anthracite powder-coated aluminium 511941C £227.46
Matte white powder-coated aluminium 511941W £227.46
Matte black powder-coated aluminium 511941BK £256.44
511941

92 Accessibility - Be-Line range
®
