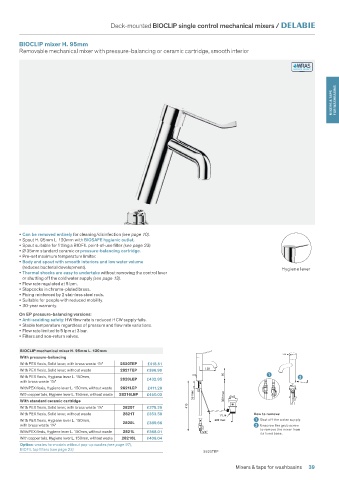

Deck-mounted BIOCLIP single control mechanical mixers /


            BIOCLIP mixer H. 95mm
            Removable mechanical mixer with pressure-balancing or ceramic cartridge, smooth interior







                                                                                                                          MIXERS & TAPS    FOR WASHBASINS






























            • Can be removed entirely for cleaning/disinfection (see page 10).
            • Spout H. 95mm L. 120mm with BIOSAFE hygienic outlet.
            • Spout suitable for fitting a BIOFIL point-of-use filter (see page 23).
            • Ø 35mm standard ceramic or pressure-balancing cartridge.
            • Pre-set maximum temperature limiter.
            • Body and spout with smooth interiors and low water volume
             (reduces bacterial development).                                                           Hygiene lever
            • Thermal shocks are easy to undertake without removing the control lever
             or shutting off the cold water supply (see page 13).
            • Flow rate regulated at 5 lpm.
            • Stopcocks in chrome-plated brass.
            • Fixing reinforced by 2 stainless steel rods.
            • Suitable for people with reduced mobility.
            • 30-year warranty.
            On EP pressure-balancing versions:
            • Anti-scalding safety: HW flow rate is reduced if CW supply fails.
            • Stable temperature regardless of pressure and flow rate variations.
            • Flow rate limited to 5 lpm at 3 bar.
            • Filters and non-return valves.

            BIOCLIP mechanical mixer H. 95mm L. 120mm
            With pressure-balancing
            With PEX flexis, Solid lever, with brass waste 1¼"   2820TEP  £418.51
            With PEX flexis, Solid lever, without waste   2821TEP  £396.90    120
            With PEX flexis, Hygiene lever L. 150mm,    2820LEP  £432.95             95                       2
            with brass waste 1¼"
            With PEX flexis, Hygiene lever L. 150mm, without waste   2821LEP  £411.29
            With copper tails, Hygiene lever L. 150mm, without waste  28216LEP  £450.03  55 max  300 max  Ø 63
            With standard ceramic cartridge
            With PEX flexis, Solid lever, with brass waste 1¼"   2820T  £375.25  410
            With PEX flexis, Solid lever, without waste   2821T  £353.59                       How to remove:
                                                                                  1"1/4
            With PEX flexis, Hygiene lever L. 150mm,                              200 max       Shut off the water supply.
            with brass waste 1¼"                2820L    £389.66                              2 Unscrew the grub screw
                                                                                                      to remove the mixer from
            With PEX flexis, Hygiene lever L. 150mm, without waste   2821L  £368.01    3/8"
                                                                                                      its fixed base.
            With copper tails, Hygiene lever L. 150mm, without waste  28216L  £409.04
            Option: wastes for models without pop-up wastes (see page 97),
            BIOFIL tap filters (see page 23)
                                                                             2820TEP
