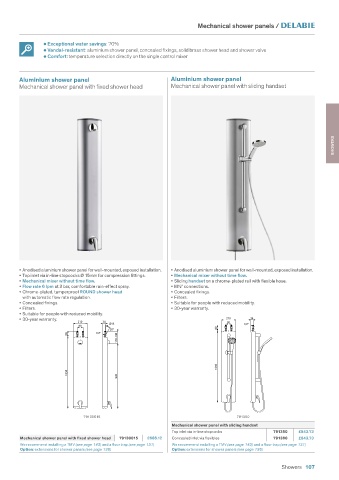

Page 109 - Water_Controls_for_Public-Commercial

Mechanical shower panels /

• Exceptional water savings: 70%
• Vandal-resistant: aluminium shower panel, concealed fixings, solid brass shower head and shower valve
• Comfort: temperature selection directly on the single control mixer

Aluminium shower panel Aluminium shower panel
Mechanical shower panel with fixed shower head Mechanical shower panel with sliding handset

SHOWERS

• Anodised aluminium shower panel for wall-mounted, exposed installation. • Anodised aluminium shower panel for wall-mounted, exposed installation.
• Top inlet via in-line stopcocks Ø 15mm for compression fittings. • Mechanical mixer without time flow.
• Mechanical mixer without time flow. • Sliding handset on a chrome-plated rail with flexible hose.
• Flow rate 6 lpm at 3 bar, comfortable rain-effect spray. • M½" connections.
• Chrome-plated, tamperproof ROUND shower head • Concealed fixings.
with automatic flow rate regulation. • Filters.
• Concealed fixings. • Suitable for people with reduced mobility.
• Filters. • 30-year warranty.
• Suitable for people with reduced mobility.
• 30-year warranty. 210 34
210 34 80
Ø15 1/2"
80
30° 80
80 1/2"
170-190

1050
1050
945

79130015 791350
Mechanical shower panel with sliding handset
Top inlet via in-line stopcocks 791350 £843.73
Mechanical shower panel with fixed shower head 79130015 £686.12 Concealed inlet via flexibles 791360 £843.73
We recommend installing a TMV (see page 143) and a floor trap (see page 131) We recommend installing a TMV (see page 143) and a floor trap (see page 131)
Option: extensions for shower panels (see page 136) Option: extensions for shower panels (see page 136)

Showers 107
