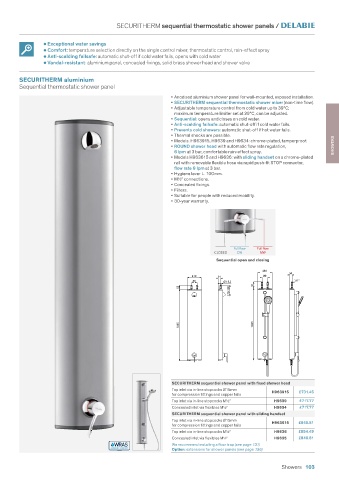

Page 105 - Water_Controls_for_Public-Commercial

SECURITHERM sequential thermostatic shower panels /

• Exceptional water savings
• Comfort: temperature selection directly on the single control mixer, thermostatic control, rain-effect spray
• Anti-scalding failsafe: automatic shut-off if cold water fails, opens with cold water
• Vandal-resistant: aluminium panel, concealed fixings, solid brass shower head and shower valve

SECURITHERM aluminium
Sequential thermostatic shower panel

• Anodised aluminium shower panel for wall-mounted, exposed installation.
• SECURITHERM sequential thermostatic shower mixer (non-time flow).
• Adjustable temperature control from cold water up to 39°C;
maximum temperature limiter set at 39°C, can be adjusted.
• Sequential: opens and closes on cold water.
• Anti-scalding failsafe: automatic shut-off if cold water fails.
• Prevents cold showers: automatic shut-off if hot water fails.
• Thermal shocks are possible.
• Models. H963915, H9639 and H9634: chrome-plated, tamperproof.
• ROUND shower head with automatic flow rate regulation, SHOWERS
6 lpm at 3 bar, comfortable rain-effect spray.
• Models H963615 and H9636: with sliding handset on a chrome-plated
rail with removable flexible hose via rapid push-fit STOP connector,
flow rate 9 lpm at 3 bar.
• Hygiene lever L. 100mm.
• M½" connections.
• Concealed fixings.
• Filters.
• Suitable for people with reduced mobility.
• 30-year warranty.

Full flow Full flow
CLOSED CW MW
Sequential open and closing
210210
3434
210 34 8080
80 Ø 15,2 1/2"1/2"
91 91
55
170-190

1045 1045

H963615
H963915
SECURITHERM sequential shower panel with fixed shower head
Top inlet via in-line stopcocks Ø15mm
for compression fittings and copper tails H963915 £731.45
Top inlet via in-line stopcocks M½" H9639 £717.77
Concealed inlet via flexibles M½" H9634 £717.77
SECURITHERM sequential shower panel with sliding handset
Top inlet via in-line stopcocks Ø15mm £840.81
for compression fittings and copper tails H963615
Top inlet via in-line stopcocks M½" H9636 £854.49
Concealed inlet via flexibles M½" H9635 £840.81
We recommend installing a floor trap (see page 131)
Option: extensions for shower panels (see page 136)

Showers 103
