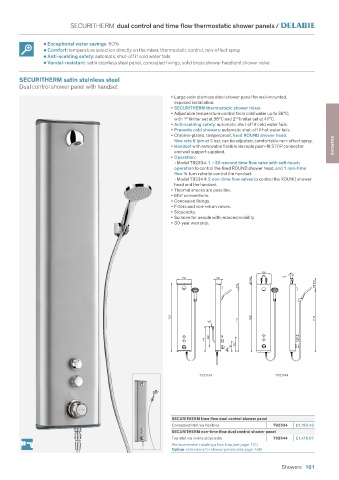

SECURITHERM dual control and time flow thermostatic shower panels /

• Exceptional water savings: 80%
• Comfort: temperature selection directly on the mixer, thermostatic control, rain-effect spray
• Anti-scalding safety: automatic shut-off if cold water fails
• Vandal-resistant: satin stainless steel panel, concealed fixings, solid brass shower head and shower valve

SECURITHERM satin stainless steel
Dual control shower panel with handset

• Large satin stainless steel shower panel for wall-mounted,
exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control from cold water up to 38°C;
with 1 limiter set at 38°C and 2 limiter set at 41°C.
st
nd
• Anti-scalding safety: automatic shut-off if cold water fails.
• Prevents cold showers: automatic shut-off if hot water fails.
• Chrome-plated, tamperproof, fixed ROUND shower head,
flow rate 6e 6 lpm at 3 bar, can be adjusted, comfortable rain-effect spray.
a
o
t
fl
w r
• Handset with removable flexible via rapid push-fit STOP connector SHOWERS
and wall support supplied.
• Operation:
- Model 792334: 1 ~30-second time flow valve with soft-touch
operation to control the fixed ROUND shower head, and 1 non-time
flow ¼-turn valve to control the handset.
- Model 792344: 2 non-time flow valves to control the ROUND shower
head and the handset.
• Thermal shocks are possible.
• M½" connections.
• Concealed fixings.
• Filters and non-return valves.
• Stopcocks.
• Suitable for people with reduced mobility.
• 30-year warranty.

250
40
80
65-105
250 100 1/2"
105 170-210

1220 1220 1115
1/2" 1115

360
445
197 272
85

792334 792344

SECURITHERM time flow dual control shower panel
Concealed inlet via flexibles 792334 £1,183.43
SECURITHERM non-time flow dual control shower panel
Top inlet via in-line stopcocks 792344 £1,145.07
We recommend installing a floor trap (see page 131)
Option: extensions for shower panels (see page 136)
