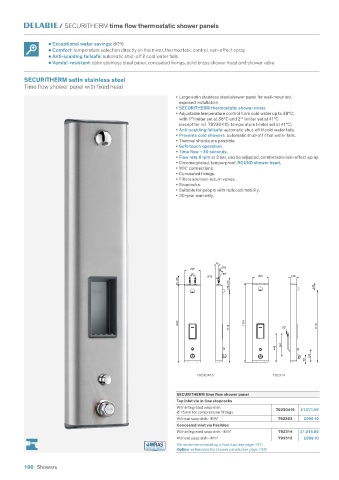

Page 102 - Water_Controls_for_Public-Commercial

/ SECURITHERM time flow thermostatic shower panels

• Exceptional water savings: 80%
• Comfort: temperature selection directly on the mixer, thermostatic control, rain-effect spray
• Anti-scalding failsafe: automatic shut-off if cold water fails
• Vandal-resistant: satin stainless steel panel, concealed fixings, solid brass shower head and shower valve

SECURITHERM satin stainless steel
Time flow shower panel with fixed head

• Large satin stainless steel shower panel for wall-mounted,
exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control from cold water up to 38°C;
st
nd
with 1 limiter set at 38°C and 2 limiter set at 41°C
(except for ref. 79230415: temperature limiter set at 41°C).
• Anti-scalding failsafe: automatic shut-off if cold water fails.
• Prevents cold showers: automatic shut-off if hot water fails.
• Thermal shocks are possible.
• Soft-touch operation.
• Time flow ~30 seconds.
• Flow rate 6 lpm at 3 bar, can be adjusted, comfortable rain-effect spray.
• Chrome-plated, tamperproof, ROUND shower head.
• M½" connections.
• Concealed fixings.
• Filters and non-return valves.
• Stopcocks.
• Suitable for people with reduced mobility.
• 30-year warranty.

40
Ø15
250
80 30°
Ø15 250 100
65-105
170-210 125

1220 1210
1115 1/2" 1114

361
448
197
87

79230415 792314

SECURITHERM time flow shower panel
Top inlet via in-line stopcocks
With integrated soap dish 79230415 £1,071.59
Ø 15mm for compression fittings
Without soap dish - M½" 792303 £999.10
Concealed inlet via flexibles
With integrated soap dish - M½" 792314 £1,045.66
Without soap dish - M½" 792313 £999.10
We recommend installing a floor trap (see page 131)
Option: extensions for shower panels (see page 136)

100 Showers
