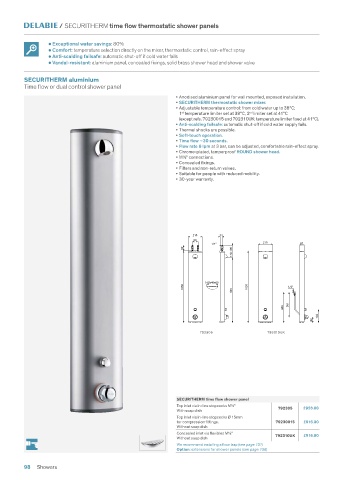

Page 100 - Water_Controls_for_Public-Commercial

/ SECURITHERM time flow thermostatic shower panels

• Exceptional water savings: 80%
• Comfort: temperature selection directly on the mixer, thermostatic control, rain-effect spray
• Anti-scalding failsafe: automatic shut-off if cold water fails
• Vandal-resistant: aluminium panel, concealed fixings, solid brass shower head and shower valve

SECURITHERM aluminium
Time flow or dual control shower panel

• Anodised aluminium panel for wall mounted, exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control: from cold water up to 38°C;
nd
1 temperature limiter set at 38°C, 2 limiter set at 41°C
st
(except refs. 79230015 and 792310UK: temperature limiter fixed at 41°C).
• Anti-scalding failsafe: automatic shut-off if cold water supply fails.
• Thermal shocks are possible.
• Soft-touch operation.
• Time flow ~30 seconds.
• Flow rate 6 lpm at 3 bar, can be adjusted, comfortable rain-effect spray.
• Chrome-plated, tamperproof ROUND shower head.
• M½" connections.
• Concealed fixings.
• Filters and non-return valves.
• Suitable for people with reduced mobility.
• 30-year warranty.

210 34
80
1/2" 210 67
80
170-190

160x40x60
1050 945 1050 1/2"

361
443
192
82
792305 792310UK

SECURITHERM time flow shower panel
Top inlet via in-line stopcocks M½" 792305 £926.88
With soap dish
Top inlet via in-line stopcocks Ø 15mm
for compression fittings. 79230015 £916.80
Without soap dish
Concealed inlet via flexibles M½" 792310UK £916.80
Without soap dish
We recommend installing a floor trap (see page 131)
Option: extensions for shower panels (see page 136)

98 Showers
