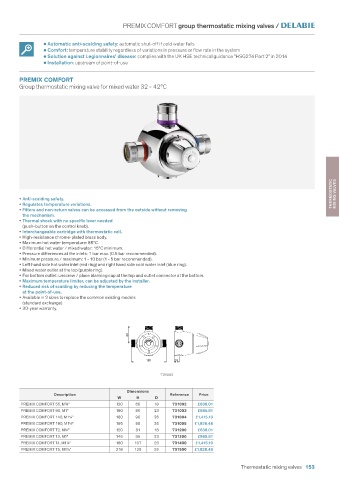

Page 155 - water-controls-for-public-and-commercial-places
P. 155

PREMIX COMFORT group thermostatic mixing valves /


                •  Automatic anti-scalding safety: automatic shut-off if cold water fails
                •  Comfort: temperature stability regardless of variations in pressure or flow rate in the system
                •  Solution against Legionnaires' disease: complies with the UK HSE technical guidance "HSG274 Part 2" in 2014
                •  Installation: upstream of point-of-use


        PREMIX COMFORT
        Group thermostatic mixing valve for mixed water 32 - 42°C



















                                                                                                                      THERMOSTATIC   MIXING VALVES


        • Anti-scalding safety.
        • Regulates temperature variations.
        • Filters and non-return valves can be accessed from the outside without removing
         the mechanism.
        • Thermal shock with no specific lever needed
         (push-button on the control knob).
        • Interchangeable cartridge with thermostatic cell.
        • High-resistance chrome-plated brass body.
        • Maximum hot water temperature: 85°C.
        • Differential hot water / mixed water: 15°C minimum.
        • Pressure differences at the inlets: 1 bar max. (0.5 bar recommended).
        • Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
        • Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
        • Mixed water outlet at the top (purple ring).
        • For bottom outlet: unscrew / place blanking cap at the top and outlet connector at the bottom.
        • Maximum temperature limiter, can be adjusted by the installer.
        • Reduced risk of scalding by reducing the temperature
         at the point-of-use.
        • Available in 2 sizes to replace the common existing models
         (standard exchange).
        • 30-year warranty.




                                              60




                                                    120       18

                                                         731002


                                              Dimensions
                    Description                              Reference  Price
                                          W      H     D
        PREMIX COMFORT 55, M¾"            120    60    18     731002  £636.01
        PREMIX COMFORT 90, M1"            160    80    23     731003  £985.81
        PREMIX COMFORT 140, M1¼"          180    90    26     731004  £1,415.10
        PREMIX COMFORT 190, M1½"          195    98    26     731005  £1,828.48
        PREMIX COMFORT T2, M¾"            120    81    18     731200  £636.01
        PREMIX COMFORT T3, M1"            146    95    23     731300  £985.81
        PREMIX COMFORT T4, M1¼"           180   107    26     731400  £1,415.10
        PREMIX COMFORT T5, M1½"           218   129    26     731500  £1,828.48


                                                                                      Thermostatic mixing valves  153
