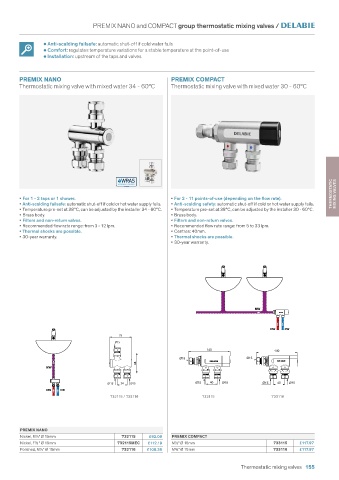

Page 157 - water-controls-for-public-and-commercial-places

PREMIX NANO and COMPACT group thermostatic mixing valves /

• Anti-scalding failsafe: automatic shut-off if cold water fails
• Comfort: regulates temperature variations for a stable temperature at the point-of-use
• Installation: upstream of the taps and valves

PREMIX NANO PREMIX COMPACT
Thermostatic mixing valve with mixed water 34 - 60°C Thermostatic mixing valve with mixed water 30 - 60°C

THERMOSTATIC MIXING VALVES

• For 1 - 2 taps or 1 shower. • For 2 - 11 points-of-use (depending on the flow rate).
• Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails. • Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
• Temperature pre-set at 38°C, can be adjusted by the installer 34 - 60°C. • Temperature pre-set at 38°C, can be adjusted by the installer 30 - 60°C.
• Brass body. • Brass body.
• Filters and non-return valves. • Filters and non-return valves.
• Recommended flow rate range: from 3 - 12 lpm. • Recommended flow rate range: from 5 to 33 lpm.
• Thermal shocks are possible. • Centres: 40mm.
• 30-year warranty. • Thermal shocks are possible.
• 30-year warranty.

MW

HW CW
75
Ø15
140 140
Ø15 Ø15
68
MW

Ø 15 34 Ø15 Ø15 40 Ø15 Ø15 40 Ø15
HW CW
732115 / 732116 733115 733116

PREMIX NANO
Nickel, M½" Ø 15mm 732115 £92.09 PREMIX COMPACT
Nickel, F½ " Ø 15mm 732115MEC £112.19 M½" Ø 15mm 733115 £117.97
Polished, M½" Ø 15mm 732116 £108.39 M¾" Ø 15mm 733116 £117.97

Thermostatic mixing valves 155
