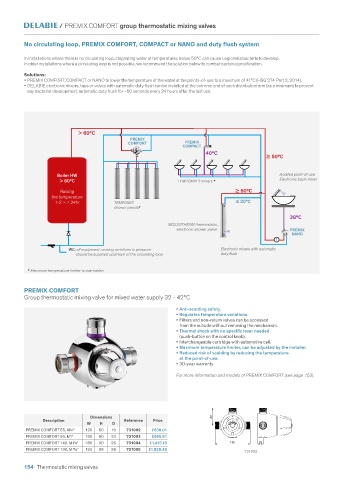

Page 156 - water-controls-for-public-and-commercial-places

/ PREMIX COMFORT group thermostatic mixing valves

No circulating loop, PREMIX COMFORT, COMPACT or NANO and duty flush system

In installations where there is no circulating loop, stagnating water at temperatures below 50°C can cause Legionella bacteria to develop.
In older installations where a circulating loop is not possible, we recommend the solution below to combat bacterial proliferation.
Solutions:
• PREMIX COMFORT, COMPACT or NANO to lower the temperature of the water at the points-of-use to a maximum of 41°C (HSG 274 Part 2, 2014).
• DELABIE electronic mixers, taps or valves with automatic duty flush can be installed at the extreme end of each distribution arm (as a minimum) to prevent
any bacterial development: automatic duty flush for ~60 seconds every 24 hours after the last use.

> 60°C
PREMIX
COMFORT PREMIX
COMPACT
40°C
≥ 50°C

Boiler HW Isolated point-of-use
> 60°C TEMPOMIX 3 mixers * Electronic basin mixer

Raising ≥ 50°C
the temperature
1-2 / 24hr TEMPOMIX ≤ 20°C
shower panels*
38°C
SECURITHERM thermostatic,
electronic shower panel. PREMIX
NANO
T
WC: all equipment causing variations in pressure Electronic mixers with automatic
should be supplied upstream of the circulating loop duty flush

* Maximum temperature limiter is overridden

PREMIX COMFORT
Group thermostatic mixing valve for mixed water supply 32 - 42°C

• Anti-scalding safety.
• Regulates temperature variations.
• Filters and non-return valves can be accessed
from the outside without removing the mechanism.
• Thermal shock with no specific lever needed
(push-button on the control knob).
• Interchangeable cartridge with automotive cell.
• Maximum temperature limiter, can be adjusted by the installer.
• Reduced risk of scalding by reducing the temperature
at the point-of-use.
• 30-year warranty.

For more information and models of PREMIX COMFORT (see page 153).

Dimensions 60
Description Reference Price
W H D
PREMIX COMFORT 55, M¾" 120 60 18 731002 £636.01
PREMIX COMFORT 90, M1" 160 80 23 731003 £985.81
PREMIX COMFORT 140, M1¼" 180 90 26 731004 £1,415.10 120 18
PREMIX COMFORT 190, M1½" 195 98 26 731005 £1,828.48
731002

154 Thermostatic mixing valves
