Electronic urinal valves /

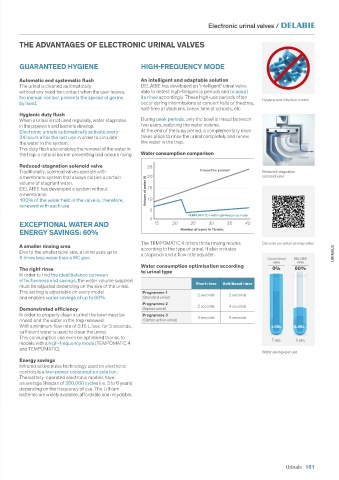

THE ADVANTAGES OF ELECTRONIC URINAL VALVES

GUARANTEED HYGIENE HIGH FREQUENCY MODE

Automatic and systematic flush An intelligent and adaptable solution
The urinal is cleaned automatically DELABIE has developed an "intelligent" urinal valve:
without any need for contact when the user leaves. able to detect high-frequency periods and to adapt
No manual contact prevents the spread of germs its rinse accordingly. These high-use periods often Hygiene and infection control
by hand. occur during intermissions at concert halls or theatres,
half-time at stadiums, break time at schools, etc.
Hygienic duty flush
When a urinal is not used regularly, water stagnates During peak periods, only the bowl is rinsed between
in the pipework and bacteria develop. two users, reducing the water volume.
Electronic urinals automatically activate every At the end of the busy period, a complementary rinse
24 hours after the last use in order to circulate takes place to rinse the urinal completely and renew
the water in the system. the water in the trap.
This duty flush also enables the renewal of the water in
the trap: a natural barrier preventing bad odours rising. Water consumption comparison

Reduced-stagnation solenoid valve 25
Traditionally, solenoid valves operate with Competitor product Reduced-stagnation
a membrane system that always carries a certain 20 solenoid valve
volume of stagnant water.
DELABIE has developed a system without Volume of water (l) 15
a membrane:
100% of the water held in the valve is, therefore, 10
renewed with each use.
5
TEMPOMATIC 4 with high-frequency mode
0
EXCEPTIONAL WATER AND 15 20 25 30 35 40
ENERGY SAVINGS: 60% Number of users in 15 min.

The TEMPOMATIC 4 offers three rinsing modes Discover our water savings video
A smaller rinsing area according to the type of urinal. It also includes
Due to the smaller bowl size, a urinal uses up to a stopcock and a flow rate adjuster. URINALS
6 times less water than a WC pan. Conventional DELABIE
valve valve
Water consumption optimisation according
The right rinse to urinal type 0% 60%
In order to find the ideal balance between
effectiveness and savings, the water volume supplied Short rinse Additional rinse
must be adjusted depending on the size of the urinal.
This setting is adjustable on every model Programme 1 2 seconds 2 seconds
and enables water savings of up to 60%. (Standard urinal)
Programme 2 2 seconds 4 seconds
Demonstrated efficiency (Siphon urinal)
In order to properly clean a urinal the bowl must be Programme 3 3 seconds 8 seconds
rinsed and the water in the trap renewed. (Siphon action urinal)
With a minimum flow rate of 0.15 L/sec. for 3 seconds, 1.05L 0.45L
sufficient water is used to clean the urinal.
This consumption can even be optimised thanks to 7 sec. 3 sec.
models with a high-frequency mode (TEMPOMATIC 4
and TEMPOMATIC).
Water savings per use
Energy savings
Infrared active pulse technology used on electronic
controls is a low-power consumption solution.
The battery-operated electronic models have
an average lifespan of 350,000 cycles (i.e. 3 to 6 years)
depending on the frequency of use. The Lithium
batteries are widely available, affordable and recyclable.

Urinals 161
