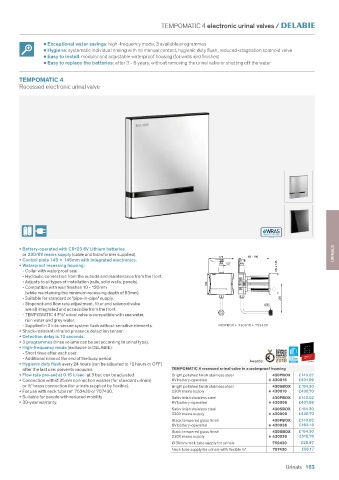

Page 165 - water-controls-for-public-and-commercial-places

TEMPOMATIC 4 electronic urinal valves /

• Exceptional water savings: high-frequency mode, 3 available programmes
• Hygiene: systematic individual rinsing with no manual contact, hygienic duty flush, reduced-stagnation solenoid valve
• Easy to install: modular and adjustable waterproof housing (for walls and finishes)
• Easy to replace the batteries: after 3 - 6 years, without removing the urinal valve or shutting off the water

TEMPOMATIC 4
Recessed electronic urinal valve

• Battery-operated with CR123 6V Lithium batteries
or 230/6V mains supply (cable and transformer supplied). URINALS
175 83 - 190
• Control plate 145 145mm with integrated electronics.
• Waterproof recessing housing: 1/2" 145 x 145
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels). 150
- Compatible with wall finishes 10 - 120mm
(while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply. 200
- Stopcock and flow rate adjustment, filter and solenoid valve Ø35
are all integrated and accessible from the front.
- TEMPOMATIC 4 F½" urinal valve is compatible with sea water,
rain water and grey water.
- Supplied in 2 kits: secure system flush without sensitive elements. 430PBOX + 430016 + 752430
• Shock-resistant infrared presence detection sensor.
• Detection delay is 10 seconds.
• 3 programmes (rinse volume can be set according to urinal type).
• High-frequency mode (exclusive to DELABIE):
- Short rinse after each user.
- Additional rinse at the end of the busy period.
Awards:
• Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF)
after the last use: prevents vacuums. TEMPOMATIC 4 recessed urinal valve in a waterproof housing
• Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted. Bright polished finish stainless steel 430PBOX £140.02
• Connection with Ø 35mm connection washer (for standard urinals) 6V battery-operated + 430016 £401.99
or ½" brass connection (for urinals supplied by flexible). Bright polished finish stainless steel 430SBOX £164.30
• For use with neck tube ref. 752430 or 757430. 230V mains supply + 430010 £430.70
• Suitable for people with reduced mobility. Satin finish stainless steel 430PBOX £140.02
• 30-year warranty. 6V battery-operated + 430006 £401.99
Satin finish stainless steel 430SBOX £164.30
230V mains supply + 430000 £430.70
Black tempered glass finish 430PBOX £140.02
6V battery-operated + 430036 £483.16
Black tempered glass finish 430SBOX £164.30
230V mains supply + 430030 £510.76
Ø 35mm neck tube supply for urinals 752430 £25.97
Neck tube supply for urinals with flexible ½" 757430 £56.17

Urinals 163
