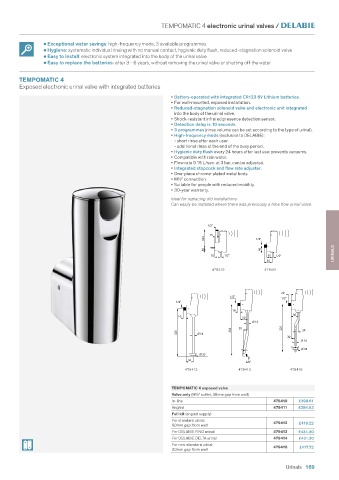

Page 171 - water-controls-for-public-and-commercial-places
P. 171

TEMPOMATIC 4 electronic urinal valves /


                •  Exceptional water savings: high-frequency mode, 3 available programmes
                •  Hygiene: systematic individual rinsing with no manual contact, hygienic duty flush, reduced-stagnation solenoid valve
                •  Easy to install: electronic system integrated into the body of the urinal valve
                •  Easy to replace the batteries: after 3 - 6 years, without removing the urinal valve or shutting off the water


        TEMPOMATIC 4
        Exposed electronic urinal valve with integrated batteries

                                                             • Battery-operated with integrated CR123 6V Lithium batteries.
                                                             • For wall-mounted, exposed installation.
                                                             • Reduced-stagnation solenoid valve and electronic unit integrated
                                                              into the body of the urinal valve.
                                                             • Shock-resistant infrared presence detection sensor.
                                                             • Detection delay is 10 seconds.
                                                             • 3 programmes (rinse volume can be set according to the type of urinal).
                                                             • High-frequency mode (exclusive to DELABIE):
                                                              - short rinse after each user.
                                                              - additional rinse at the end of the busy period.
                                                             • Hygienic duty flush every 24 hours after last use: prevents vacuums.
                                                             • Compatible with rain water.
                                                             • Flow rate 0.15 L/sec. at 3 bar, can be adjusted.
                                                             • Integrated stopcock and flow rate adjuster.
                                                             • One-piece chrome-plated metal body.
                                                             • M½" connection.
                                                             • Suitable for people with reduced mobility.
                                                             • 30-year warranty.
                                                             Ideal for replacing old installations:
                                                             Can easily be installed where there was previously a time flow urinal valve.



                                                                          1/2"
                                                                           15
                                                                         125               1/2"
                                                                         30                  45
                                                                           35   1/2"           35  1/2"               URINALS
                                                                                               54
                                                                           479410             479411



                                                                                                    20
                                                                                  1/2"
                                                                                                    1/2"
                                                               1/2"
                                                                                   19
                                                                                                        50
                                                                19                    50
                                                                                          Ø 16
                                                               325    Ø 16        350  30           325    20
                                                                                                      30
                                                                                                           Ø 16
                                                                                                           Ø 35
                                                                       Ø 35
                                                                   50
                                                                                       3/8"
                                                                  479412             479413            479416


                                                             TEMPOMATIC 4 exposed valve
                                                             Valve only (M½" outlet, 35mm gap from wall)
                                                             In-line                             479410   £399.61
                                                             Angled                              479411   £384.53
                                                             Full kit (angled supply)
                                                             For standard urinal:
                                                                                                 479412   £419.22
                                                             50mm gap from wall
                                                             For DELABIE FINO urinal             479413   £434.30
                                                             For DELABIE DELTA urinal            479414   £431.30
                                                             For non-standard urinal:
                                                                                                 479416   £417.72
                                                             30mm gap from wall

                                                                                                     Urinals  169
