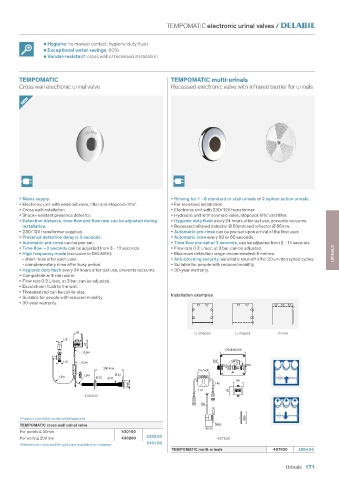

Page 173 - water-controls-for-public-and-commercial-places

TEMPOMATIC electronic urinal valves /

• Hygiene: no manual contact, hygienic duty flush
• Exceptional water savings: 60%
• Vandal-resistant: cross wall or recessed installation

TEMPOMATIC TEMPOMATIC multi-urinals
Cross wall electronic urinal valve Recessed electronic valve with infrared barrier for urinals

NEW

• Mains supply. • Rinsing for 1 - 8 standard or stall urinals or 2 siphon action urinals.
• Electronic unit with solenoid valve, filter and stopcock M½". • For recessed installation.
• Cross wall installation. • Electronic unit with 230/12V transformer.
• Shock-resistant presence detector. • Hydraulic unit with solenoid valve, stopcock M¾" and filter.
• Detection distance, time flow and flow rate can be adjusted during • Hygienic duty flush every 24 hours after last use, prevents vacuums.
installation. • Recessed infrared detector Ø 50mm and reflector Ø 85mm.
• 230/12V transformer supplied. • Automatic pre-rinse can be pre-set upon arrival of the first user.
• Presence detection delay is 3 seconds. • Automatic rinse every 30 or 60 seconds.
• Automatic pre-rinse can be pre-set. • Time flow pre-set at 3 seconds, can be adjusted from 2 - 14 seconds.
• Time flow ~3 seconds can be adjusted from 3 - 12 seconds. • Flow rate 0.3 L/sec. at 3 bar, can be adjusted.
• High frequency mode (exclusive to DELABIE): • Maximum detection range recommended: 6 metres. URINALS
- short rinse after each user. • Anti-blocking security: automatic shut-off after 20 uninterrupted cycles.
- complementary rinse after busy period. • Suitable for people with reduced mobility.
• Hygienic duty flush every 24 hours after last use, prevents vacuums. • 30-year warranty.
• Compatible with rain water.
• Flow rate 0.3 L/sec. at 3 bar, can be adjusted.
• Escutcheon flush to the wall.
• Threaded rod can be cut-to-size.
• Suitable for people with reduced mobility. Installation examples
• 30-year warranty.

62 U-shaped L-shaped In-line
1/2"
62
170x140x100
0,5m
1/2" 0,1m 3/4"
Ø20
200 max
75x75x37
1,5m Ø 32
1,5m Ø 32 Ø 21
66
Ø 60 140
170 54
430200
5m
10
Ø85
Product currently under development.
TEMPOMATIC cross wall urinal valve Ø65
42-55
For panels ≤ 30mm 430100
For walls ≤ 200 mm 430200 £390.00 487620
Alternative cross wall lengths are available on request £401.80
TEMPOMATIC multi-urinals 487620 £894.94

Urinals 171
