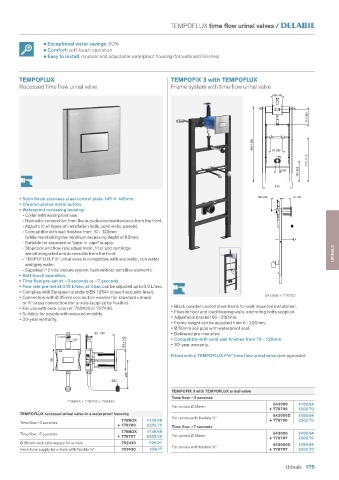

Page 177 - water-controls-for-public-and-commercial-places

TEMPOFLUX time flow urinal valves /

• Exceptional water savings: 60%
• Comfort: soft-touch operation
• Easy to install: modular and adjustable waterproof housing (for walls and finishes)

TEMPOFLUX TEMPOFIX 3 with TEMPOFLUX
Recessed time flow urinal valve Frame system with time flow urinal valve

145x145 160-220

215-265

985-1385 95-280

715-1115
155-555
Ø 50

430
160-220 13-120
• Satin finish stainless steel control plate 145 145mm.
• Chrome-plated metal button.
• Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front. 215-265
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes from 10 - 120mm
(while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment, filter and cartridge
are all integrated and accessible from the front. URINALS
- TEMPOFLUX F½" urinal valve is compatible with sea water, rain water
and grey water. 715-1115
- Supplied in 2 kits: secure system flush without sensitive elements.
• Soft-touch operation.
• Time flow pre-set at ~3 seconds or ~7 seconds.
• Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted up to 0.3 L/sec.
• Complies with European standard EN 12541 (class II acoustic level).
543006 + 778700
• Connection with Ø 35mm connection washer (for standard urinals)
or ½" brass connection (for urinals supplied by flexible).
• For use with neck tube ref. 752430 or 757430. • Black powder-coated steel frame for wall-mounted installation.
• Suitable for people with reduced mobility. • Fixes to floor and load-bearing walls, anchoring bolts supplied.
• 30-year warranty. • Adjustable bracket 95 - 280mm.
• Frame height can be adjusted from 0 - 200mm.
• Ø 50mm soil pipe with waterproof seal.
175 83 - 190 • Delivered pre-mounted.
145 x 145 • 30-year warranty.
1/2" • Compatible with solid wall finishes from 13 - 120mm.

Fitted with a TEMPOFLUX F½" time flow urinal valve (see opposite).
150

200
Ø35
TEMPOFIX 3 with TEMPOFLUX urinal valve
Time flow ~3 seconds
778BOX + 778700 + 752430
543006 £458.94
For urinals Ø 35mm
+ 778700 £202.70
TEMPOFLUX recessed urinal valve in a waterproof housing 543006D £458.94
For urinals with flexible ½"
778BOX £138.68 + 778700 £202.70
Time flow ~3 seconds
+ 778700 £202.70 Time flow ~7 seconds
778BOX £138.68
Time flow ~7 seconds 543006 £458.94
+ 778707 £202.70 For urinals Ø 35mm + 778707 £202.70
Ø 35mm neck tube supply for urinals 752430 £25.97 543006D £458.94
For urinals with flexible ½"
Neck tube supply for urinals with flexible ½" 757430 £56.17 + 778707 £202.70
Urinals 175
