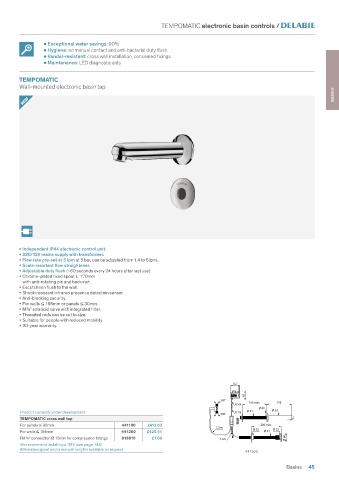

Page 47 - Water_Controls_for_Public-Commercial
P. 47

TEMPOMATIC electronic basin controls /


                •  Exceptional water savings: 90%
                •  Hygiene: no manual contact and anti-bacterial duty flush
                •  Vandal-resistant: cross wall installation, concealed fixings
                •  Maintenance: LED diagnostic aids


        TEMPOMATIC
        Wall-mounted electronic basin tap

         NEW                                                                                                          BASINS































        • Independent IP44 electronic control unit.
        • 230/12V mains supply with transformer.
        • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
        • Scale-resistant flow straightener.
        • Adjustable duty flush (~60 seconds every 24 hours after last use).
        • Chrome-plated fixed spout L. 170mm
         with anti-rotating pin and back-nut.
        • Escutcheon flush to the wall.
        • Shock-resistant infrared presence detection sensor.
        • Anti-blocking security.
        • For walls ≤ 165mm or panels ≤ 30mm.
        • M⅜" solenoid valve with integrated filter.
        • Threaded rods can be cut to size.
        • Suitable for people with reduced mobility.
        • 30-year warranty.











                                                                                   62
                                                                                       62
                                                                              3/8"
                                                                                    0,5m  165 max  172
                                                                                            Ø 60
        Product currently under development.                                        0,1m  Ø 21   Ø 32
                                                                              3/8"
        TEMPOMATIC cross wall tap
        For panels ≤ 30mm                   441100   £413.63                                 200 max
                                                                             1,5m
        For walls ≤ 165mm                   441200   £425.44                              Ø 32  Ø 21  Ø 32
        FM⅜” connection Ø 15mm for compression fittings  813815  £7.00         1,5m                   Ø 60
        We recommend installing a TMV (see page 143)
        Alternative spout and cross wall lengths available on request
                                                                                       441200
                                                                                                      Basins  45
