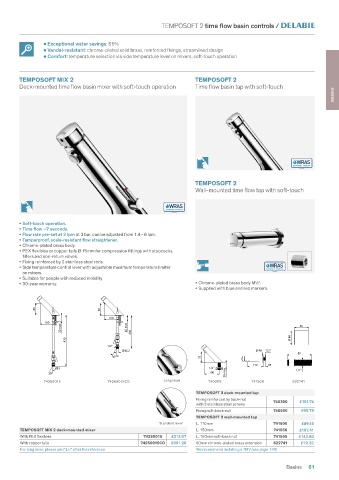

Page 63 - Water_Controls_for_Public-Commercial

TEMPOSOFT 2 time flow basin controls /

• Exceptional water savings: 85%
• Vandal-resistant: chrome-plated solid brass, reinforced fixings, streamlined design
• Comfort: temperature selection via side temperature lever on mixers, soft-touch operation

TEMPOSOFT MIX 2 TEMPOSOFT 2
Deck-mounted time flow basin mixer with soft-touch operation Time flow basin tap with soft-touch
BASINS

TEMPOSOFT 2
Wall-mounted time flow tap with soft-touch

• Soft-touch operation.
• Time flow ~7 seconds.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Tamperproof, scale-resistant flow straightener.
• Chrome-plated brass body.
• PEX flexibles or copper tails Ø 15mm for compression fittings with stopcocks,
filters and non-return valves.
• Fixing reinforced by 2 stainless steel rods.
• Side temperature control lever with adjustable maximum temperature limiter
on mixers.
• Suitable for people with reduced mobility.
• 30-year warranty. • Chrome-plated brass body M½".
• Supplied with blue and red markers.

85 85
100
100
30 max 40 max 430 50

430 Ø 48
1/2"
Ø15,2 Ø 48 1/2"
85
30° 75
110 15
Ø15 1/2" 1/2"
30° 100 30 max
74250015 74250015CO Long lever 740300 741500 822741

TEMPOSOFT 2 deck-mounted tap
Fixing reinforced by back-nut
with 3 stainless steel screws 740300 £101.74
Fixing with back-nut 740500 £90.79
TEMPOSOFT 2 wall-mounted tap
Standard lever L. 110mm 741500 £89.15
TEMPOSOFT MIX 2 deck-mounted mixer L. 150mm 741550 £107.41
With PEX flexibles 74250015 £213.07 L. 150mm with back nut 741555 £143.60
With copper tails 74250015CO £301.20 50mm chrome-plated brass extension 822741 £72.32
For long lever, please add "LH" after the reference We recommend installing a TMV (see page 143)

Basins 61
