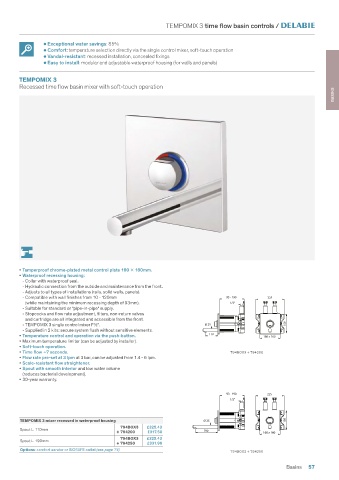

Page 59 - Water_Controls_for_Public-Commercial

TEMPOMIX 3 time flow basin controls /

• Exceptional water savings: 85%
• Comfort: temperature selection directly via the single control mixer, soft-touch operation
• Vandal-resistant: recessed installation, concealed fixings
• Easy to install: modular and adjustable waterproof housing (for walls and panels)

TEMPOMIX 3
Recessed time flow basin mixer with soft-touch operation
BASINS

• Tamperproof chrome-plated metal control plate 160 160mm.
• Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installations (rails, solid walls, panels).
- Compatible with wall finishes from 10 - 120mm 93 - 190 225
(while maintaining the minimum recessing depth of 93mm). 1/2"
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters, non-return valves
and cartridge are all integrated and accessible from the front.
- TEMPOMIX 3 single control mixer F½". Ø 25 150
- Supplied in 2 kits: secure system flush without sensitive elements.
• Temperature control and operation via the push-button. 110 160 x 160
• Maximum temperature limiter (can be adjusted by installer).
• Soft-touch operation.
• Time flow ~7 seconds. 794BOX3 + 794200
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Scale-resistant flow straightener.
• Spout with smooth interior and low water volume
(reduces bacterial development).
• 30-year warranty.

93 - 190 225
1/2"

TEMPOMIX 3 mixer recessed in waterproof housing Ø 25 150
794BOX3 £325.43
Spout L. 110mm
+ 794200 £317.50 190 160 x 160
794BOX3 £325.43
Spout L. 190mm
+ 794250 £331.96
Options: comfort aerator or BIOSAFE outlet (see page 74)
794BOX3 + 794250
Basins 57
