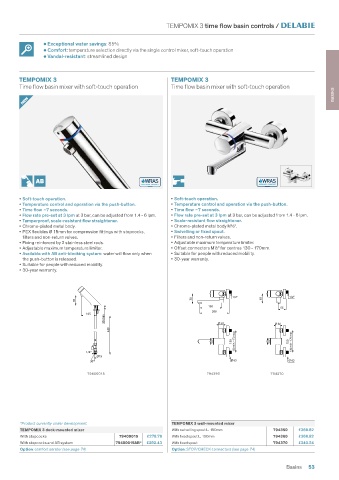

Page 55 - Water_Controls_for_Public-Commercial
P. 55

TEMPOMIX 3 time flow basin controls /


                •  Exceptional water savings: 85%
                •  Comfort: temperature selection directly via the single control mixer, soft-touch operation
                •  Vandal-resistant: streamlined design



        TEMPOMIX 3                                           TEMPOMIX 3
        Time flow basin mixer with soft-touch operation       Time flow basin mixer with soft-touch operation

         NEW                                                                                                          BASINS




















        • Soft-touch operation.                              • Soft-touch operation.
        • Temperature control and operation via the push-button.  • Temperature control and operation via the push-button.
        • Time flow ~7 seconds.                               • Time flow ~7 seconds.
        • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.  • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
        • Tamperproof, scale-resistant flow straightener.     • Scale-resistant flow straightener.
        • Chrome-plated metal body.                          • Chrome-plated metal body M½".
        • PEX flexibles Ø 15mm for compression fittings with stopcocks,   • Swivelling or fixed spout.
         filters and non-return valves.                       • Filters and non-return valves.
        • Fixing reinforced by 2 stainless steel rods.       • Adjustable maximum temperature limiter.
        • Adjustable maximum temperature limiter.            • Offset connectors M½" for centres 130 - 170mm.
        • Available with AB anti-blocking system: water will flow only when    • Suitable for people with reduced mobility.
         the push-button is released.                        • 30-year warranty.
        • Suitable for people with reduced mobility.
        • 30-year warranty.





                           70                                       70             1/2"      65        1/2"
                                                                          150                      55
                                                                           200
                               105
                                      30 max                                  Ø 30                Ø 30
                                       430
                                                                                  150  130 min - 170 max  150  130 min - 170 max

                               1/2"
                                   Ø15
                                 30°                                              Ø 65                Ø 65

                                79400015                                  794350                794370








        *Product currently under development.                TEMPOMIX 3 wall-mounted mixer
        TEMPOMIX 3 deck-mounted mixer                        With swivelling spout L. 150mm      794350   £369.82
        With stopcocks                     79400015  £278.78  With fixed spout L. 150mm           794360   £369.82
        With stopcocks and AB system      79400015AB*  £292.43  With fixed spout                  794370   £340.24
        Option: comfort aerator (see page 74)                Option: STOP/CHECK connectors (see page 74)


                                                                                                      Basins  53
   50   51   52   53   54   55   56   57   58   59   60
