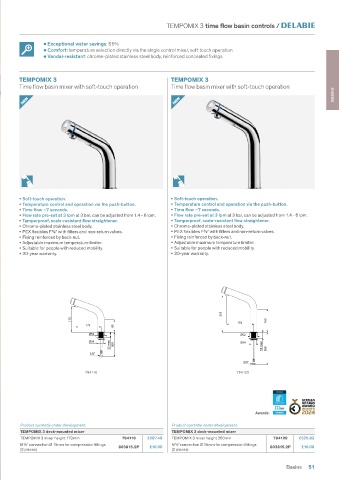

Page 53 - Water_Controls_for_Public-Commercial

TEMPOMIX 3 time flow basin controls /

• Exceptional water savings: 85%
• Comfort: temperature selection directly via the single control mixer, soft touch operation
• Vandal-resistant: chrome-plated stainless steel body, reinforced concealed fixings

TEMPOMIX 3 TEMPOMIX 3
Time flow basin mixer with soft-touch operation Time flow basin mixer with soft-touch operation

NEW NEW BASINS

• Soft-touch operation. • Soft-touch operation.
• Temperature control and operation via the push-button. • Temperature control and operation via the push-button.
• Time flow ~7 seconds. • Time flow ~7 seconds.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm. • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Tamperproof, scale-resistant flow straightener. • Tamperproof, scale-resistant flow straightener.
• Chrome-plated stainless steel body. • Chrome-plated stainless steel body.
• PEX flexibles F⅜" with filters and non-return valves. • PEX flexibles F⅜" with filters and non-return valves.
• Fixing reinforced by back-nut. • Fixing reinforced by back-nut.
• Adjustable maximum temperature limiter. • Adjustable maximum temperature limiter.
• Suitable for people with reduced mobility. • Suitable for people with reduced mobility.
• 30-year warranty. • 30-year warranty.

255
170 185 160
175 85
Ø52 Ø52
Ø34 Ø34
55 max 500 55 max 360
3/8"
3/8"
794110 794120

Awards:

Product currently under development. Product currently under development.
TEMPOMIX 3 deck-mounted mixer TEMPOMIX 3 deck-mounted mixer
TEMPOMIX 3 mixer height 170mm 794110 £287.48 TEMPOMIX 3 mixer height 250mm 794120 £325.83
M⅜" connection Ø 15mm for compression fittings 803815.2P £10.00 M⅜"connection Ø 15mm for compression fittings 803815.2P £10.00
(2 pieces) (2 pieces)

Basins 51
