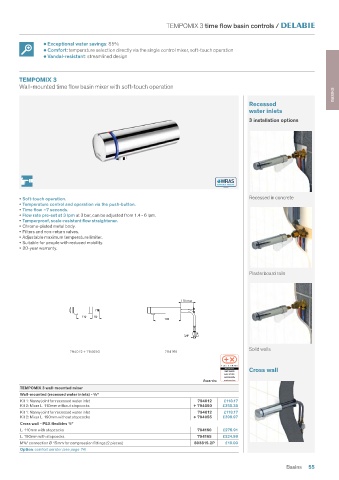

Page 57 - Water_Controls_for_Public-Commercial

TEMPOMIX 3 time flow basin controls /

• Exceptional water savings: 85%
• Comfort: temperature selection directly via the single control mixer, soft-touch operation
• Vandal-resistant: streamlined design

TEMPOMIX 3
Wall-mounted time flow basin mixer with soft-touch operation
BASINS

Recessed
water inlets
3 installation options

Recessed in concrete
• Soft-touch operation.
• Temperature control and operation via the push-button.
• Time flow ~7 seconds.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Tamperproof, scale-resistant flow straightener.
• Chrome-plated metal body.
• Filters and non-return valves.
• Adjustable maximum temperature limiter.
• Suitable for people with reduced mobility.
• 30-year warranty.

Plasterboard rails

110 max

110 50
190

3/8"

Solid walls
794012 + 794050 794165

Cross wall

Awards:
TEMPOMIX 3 wall-mounted mixer
Wall-mounted (recessed water inlets) - ½"
Kit 1: Nanny joint for recessed water inlet 794012 £118.17
Kit 2: Mixer L. 110mm without stopcocks + 794050 £350.38
Kit 1: Nanny joint for recessed water inlet 794012 £118.17
Kit 2: Mixer L. 190mm without stopcocks + 794055 £399.97
Cross wall - PEX flexibles ⅜"
L. 110mm with stopcocks 794160 £276.91
L. 190mm with stopcocks 794165 £324.99
M⅜" connection Ø 15mm for compression fittings (2 pieces) 803815.2P £10.00
Option: comfort aerator (see page 74)

Basins 55
