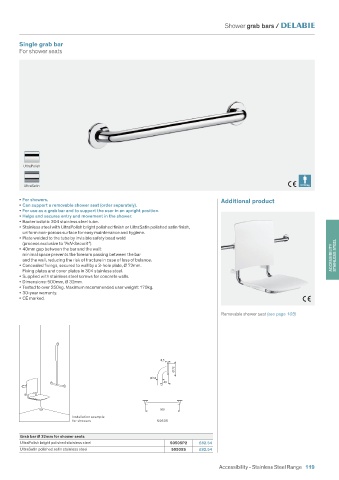

Page 121 - Accessibility-Accessories
P. 121

Shower grab bars /


            Single grab bar
            For shower seats
























             UltraPolish


              UltraSatin

            • For showers.                                                         Additional product
            • Can support a removable shower seat (order separately).
            • For use as a grab bar and to support the user in an upright position.
            • Helps and secures entry and movement in the shower.
            • Bacteriostatic 304 stainless steel tube.
            • Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
             uniform non-porous surface for easy maintenance and hygiene.
            • Plate welded to the tube by invisible safety bead weld
             (process exclusive to "ArN-Securit").
            • 40mm gap between the bar and the wall:
             minimal space prevents the forearm passing between the bar                                                   ACCESSIBILITY    STAINLESS STEEL
             and the wall, reducing the risk of fracture in case of loss of balance.
            • Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm.
             Fixing plates and cover plates in 304 stainless steel.
            • Supplied with stainless steel screws for concrete walls.
            • Dimensions: 500mm, Ø 32mm.
            • Tested to over 200kg. Maximum recommended user weight: 135kg.
            • 10-year warranty.
            • CE marked.

                                                                                   Removable shower seat (see page 101)








                                                              8,5
                                                                  Ø 72
                                                          Ø 32
                                                               40




                                                             500
                               Installation example
                               for showers                  50505

            Grab bar Ø 32mm for shower seats
            UltraPolish bright polished stainless steel          50505P2   £78.56
            UltraSatin polished satin stainless steel            50505S    £78.56

                                                                                  Accessibility - Stainless Steel Range  119
