Page 116 - Accessibility-Accessories
P. 116
/ Shower grab bars
Right angled grab bar and angled riser rail
Additional products
Sliding shower head holders, sliding soap dish
and shower shelf with glove holder (see page 121)
UltraPolish

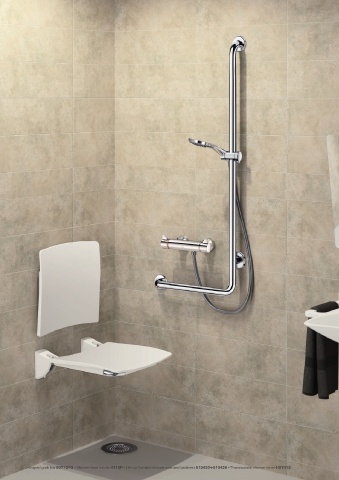

UltraSatin Installation example
for showers
• For showers.
8,5
• Use as a grab bar and to support the user in an upright position. Ø 72
• Helps and secures entry and movement in the shower.
40
• Use as a shower riser rail by adding a sliding shower head holder and/or soap dish.
• Bacteriostatic 304 stainless steel tube. Ø 32
• Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
uniform non-porous surface for easy maintenance and hygiene. 1150
• Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit"). 1265
• 40mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance. 430
• Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
• Supplied with stainless steel screws for concrete walls. 660 560
• Dimensions: 1,265 x 560 x 660mm, Ø 32mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg. Left model - 5100G
• 10-year warranty.
• CE marked. 8,5
Ø 72
40
Ø 32
1265 1150
Right angled grab bar and angled shower riser rail Ø 32mm - UltraPolish
UltraPolish bright polished stainless steel - Left model 5100GP2 £343.42
UltraPolish bright polished stainless steel - Right model 5100DP2 £343.42 430
Right angled grab bar and angled shower riser rail Ø 32mm - UltraSatin
660 560
UltraSatin polished satin stainless steel - Left model 5100GS £343.42
UltraSatin polished satin stainless steel - Right model 5100DS £343.42
Right model - 5100D
114 Accessibility - Stainless Steel Range
