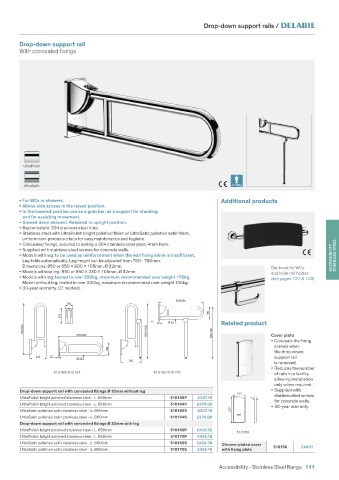

Drop-down support rails concealed fixings /


            Drop-down support rail
            With concealed fixings
























             UltraPolish


              UltraSatin

            • For WCs or showers.                                                  Additional products
            • Allows side access in the raised position.
            • In the lowered position use as a grab bar, as a support for standing
             and for assisting movement.
            • Slowed down descent. Retained in upright position.
            • Bacteriostatic 304 stainless steel tube.
            • Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
             uniform non-porous surface for easy maintenance and hygiene.
            • Concealed fixings, secured to wall by a 304 stainless steel plate, 4mm thick.
            • Supplied with stainless steel screws for concrete walls.
            • Models with leg: to be used as reinforcement when the wall fixing alone is insufficient.                    ACCESSIBILITY    STAINLESS STEEL
             Leg folds automatically. Leg height can be adjusted from 760 - 780mm.
             Dimensions: 850 or 650 x 800 x 105mm, Ø 32mm.                                          Backrest for WCs
            • Models without leg: 850 or 650 x 230 x 105mm, Ø 32mm.                 NEW             and toilet roll holder
            • Models with leg: tested to over 250kg, maximum recommended user weight 170kg.         (see page 122)
             Model without leg: tested to over 200kg, maximum recommended user weight 135kg.
            • 10-year warranty. CE marked.

                                                                   650/850
                             105
                                                                               180
                          230
                                                          17    Ø 32               Related product
             750/950            650/850                  800/1000               760/780
                                                                                                    Cover plate
                                                                                                    • Conceals the fixing
                                                                                                      screws when
                                           180                                                        the drop-down
                  242  17                                                                             support rail
                                Ø 32
                                                  300
                                                                                                      is removed.
                                                                                                    • Reduces the number
                        510160/510164                      510162/510170                              of rails in a facility,
                                                                                                      allowing installation
                                                                                                      only when required.
            Drop-down support rail with concealed fixings Ø 32mm without leg                        • Supplied with
                                                                                        105           stainless steel screws
            UltraPolish bright polished stainless steel - L. 650mm  510160P  £320.92         17
                                                                                                      for concrete walls.
            UltraPolish bright polished stainless steel - L. 850mm  510164P  £353.01                • 10-year warranty.
            UltraSatin polished satin stainless steel - L. 650mm  510160S  £320.92    230
            UltraSatin polished satin stainless steel - L. 850mm  510164S  £353.01
            Drop-down support rail with concealed fixings Ø 32mm with leg
            UltraPolish bright polished stainless steel - L. 650mm  510162P  £383.18
                                                                                        510150
            UltraPolish bright polished stainless steel - L. 850mm  510170P  £413.24
            UltraSatin polished satin stainless steel - L. 650mm  510162S  £383.18
                                                                                   Chrome-plated cover
            UltraSatin polished satin stainless steel - L. 850mm  510170S  £413.24  with fixing plate  510150  £61.17
                                                                                  Accessibility - Stainless Steel Range  111
