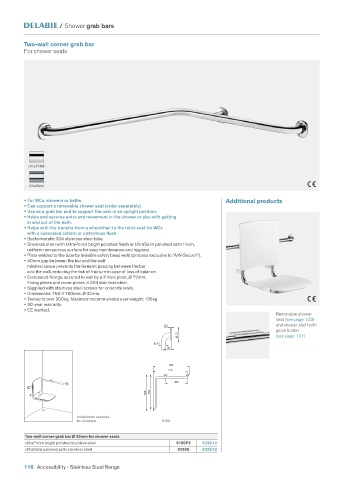

Page 120 - Accessibility-Accessories
P. 120

/ Shower grab bars


              Two-wall corner grab bar
              For shower seats
























               UltraPolish


               UltraSatin

              • For WCs, showers or baths.                                           Additional products
              • Can support a removable shower seat (order separately).
              • Use as a grab bar and to support the user in an upright position.
              • Helps and secures entry and movement in the shower or bath.
              • Helps with the transfer from a wheelchair to the toilet seat for WCs
               with recessed cisterns or direct flush.
              • Bacteriostatic 304 stainless steel tube.
              • Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
               uniform non-porous surface for easy maintenance and hygiene.
              • Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
              • 40mm gap between the bar and the wall:
               minimal space prevents the forearm passing between the bar
               and the wall, reducing the risk of fracture in case of loss of balance.
              • Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm.
               Fixing plates and cover plates in 304 stainless steel.
              • Supplied with stainless steel screws for concrete walls.
              • Dimensions: 750 x 750mm, Ø 32mm.
              • Tested to over 200kg. Maximum recommended user weight: 135kg.
              • 10-year warranty.
              • CE marked.
                                                                                                      Removable shower
                                                                                                      seat (see page 101)
                                                               8,5                                    and shower shelf with
                                                                                                      glove holder
                                                                    Ø 72                              (see page 121)
                                                           Ø 32
                                                                40

                                                                786
                                                                750
                                                                  480
                                                        786  750




                                Installation example
                                for showers                   5120

              Two-wall corner grab bar Ø 32mm for shower seats
              UltraPolish bright polished stainless steel          5120P2   £218.09
              UltraSatin polished satin stainless steel             5120S   £218.09

              118 Accessibility - Stainless Steel Range
   115   116   117   118   119   120   121   122   123   124   125
