DOC M Space guide showers - changing rooms /

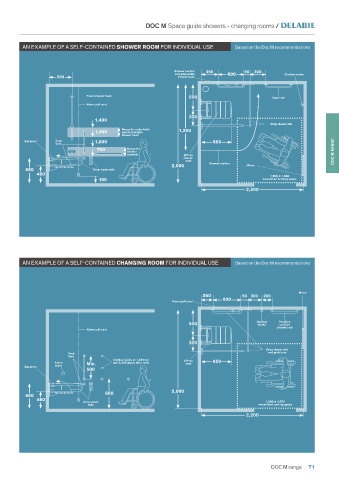

             AN EXAMPLE OF A SELF-CONTAINED SHOWER ROOM FOR INDIVIDUAL USE              Based on the Doc M recommendations



                                                                  Shower control   250     50  300
                                                                   and adjustable    600                 Clothes hooks
                         500                                        shower head

                                    Fixed shower head                   500                          Towel rail
                                    Alarm pull cord

                                                                        320
                                       1,400
                                                                                                    Drop-down rails
                                                Range for adjustable
                                       1,200    and detachable      1,200
                                                shower head
              Backrest   Grab          1,000                                    650
                         bars
                                       750        Range for
                                                  shower                                                                  DOC M RANGE
                                                  controls            Lift-up
                                                                      shower
                                                                      seat
                                                                               Shower curtain
                                                                 2,000                      Mirror
              680                     Drop-down rails
                  480
                                                                                                    1,500 x 1,500
                                        100                                                       wheelchair turning space
                                                                                            2,200











             AN EXAMPLE OF A SELF-CONTAINED CHANGING ROOM FOR INDIVIDUAL USE            Based on the Doc M recommendations




                                                                                                              Mirror
                                                                            250           50  300  200
                                                                                   600
                                                                  Alarm pull cord


                                                                        500                    Clothes   Possible
                                                                                                hooks
                                                                                                       location
                                                                                                      of towel rail
                                    Alarm pull cord
                                                                        320
                                                                                                   Drop-down rails
                             Grab                                                                  and grab bars
                             bars
                                             Clothes hooks at 1,400mm   Lift-up  650
                         Alarm      Min.     and 1,050 above floor level  seat
              Backrest   reset
                                    500

                                          800                    2,000
              680
                  480
                                  Drop-down                                                        1,500 x 1,500
                                    rails                                                       wheelchair turning space
                                                                                            2,200









                                                                                                    DOC M range   71
