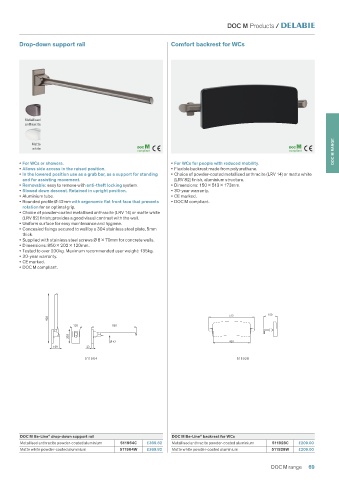

Page 71 - Accessibility-Accessories
P. 71

DOC M Products /


            Drop-down support rail                               Comfort backrest for WCs


             NEW                                                  NEW










              Metallised
              anthracite



                Matte
                 white                               DOC M                                                 DOC M
                                                     compliant                                             compliant      DOC M RANGE
            • For WCs or showers.                                • For WCs for people with reduced mobility.
            • Allows side access in the raised position.         • Flexible backrest made from polyurethane.
            • In the lowered position use as a grab bar, as a support for standing   • Choice of powder-coated metallised anthracite (LRV 14) or matte white
             and for assisting movement.                          (LRV 82) finish, aluminium structure.
            • Removable: easy to remove with anti-theft locking system.  • Dimensions: 150 x 583 x 173mm.
            • Slowed down descent. Retained in upright position.   • 10-year warranty.
            • Aluminium tube.                                    • CE marked.
            • Rounded profile Ø 42mm with ergonomic flat front face that prevents   • DOC M compliant.
             rotation for an optimal grip.
            • Choice of powder-coated metallised anthracite (LRV 14) or matte white
             (LRV 82) finish; provides a good visual contrast with the wall.
            • Uniform surface for easy maintenance and hygiene.
            • Concealed fixings secured to wall by a 304 stainless steel plate, 5mm
             thick.
            • Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
            • Dimensions: 850 x 202 x 120mm.
            • Tested to over 200kg. Maximum recommended user weight: 135kg.
            • 10-year warranty.
            • CE marked.
            • DOC M compliant.









                                                                                      583          150
                      920
                               120           850
                             202
                                             Ø 42                                     400
                        109         23

                                   511964                                               511928















                                                                           ®
            DOC M Be-Line  drop-down support rail                 DOC M Be-Line  backrest for WCs
                      ®
            Metallised anthracite powder-coated aluminium  511964C  £352.02  Metallised anthracite powder-coated aluminium  511928C  £198.95
            Matte white powder-coated aluminium  511964W  £352.02  Matte white powder-coated aluminium  511928W  £198.95
                                                                                                    DOC M range   69
   66   67   68   69   70   71   72   73   74   75   76
