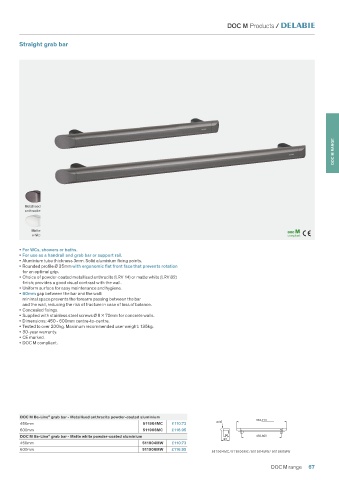

Page 69 - Accessibility-Accessories
P. 69

DOC M Products /


            Straight grab bar



















                                                                                                                          DOC M RANGE












              Metallised
              anthracite



                Matte                                                                                     DOC M
                white                                                                                     compliant

            • For WCs, showers or baths.
            • For use as a handrail and grab bar or support rail.
            • Aluminium tube thickness 3mm. Solid aluminium fixing points.
            • Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation
             for an optimal grip.
            • Choice of powder-coated metallised anthracite (LRV 14) or matte white (LRV 82)
             finish; provides a good visual contrast with the wall.
            • Uniform surface for easy maintenance and hygiene.
            • 60mm gap between the bar and the wall:
             minimal space prevents the forearm passing between the bar
             and the wall, reducing the risk of fracture in case of loss of balance.
            • Concealed fixings.
            • Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
            • Dimensions: 450 - 600mm centre-to-centre.
            • Tested to over 200kg. Maximum recommended user weight: 135kg.
            • 10-year warranty.
            • CE marked.
            • DOC M compliant.















            DOC M Be-Line  grab bar - Metallised anthracite powder-coated aluminium
                      ®
                                                                                               563-713
            450mm                                      511904MC  £105.40         Ø  35
            600mm                                      511906MC   £111.31
                      ®
            DOC M Be-Line  grab bar - Matte white powder-coated aluminium           60         450-600
                                                                                    93
            450mm                                      511904MW  £105.40
            600mm                                      511906MW   £111.31
                                                                                511904MC/511906MC/511904MW/ 511906MW
                                                                                                    DOC M range   67
   64   65   66   67   68   69   70   71   72   73   74
