/ DOC M Space guide washrooms - WCs


              DISABILITY DISCRIMINATION ACT (DDA) AND DOC M: REMOVING PHYSICAL BARRIERS
              From October 2004, the revised DDA requires that "All suppliers of   DELABIE has therefore developed a product offering, including special
              services, goods and facilities for the general public must remove   packs, which conform to the recommendations of DOC M. The objective
              all physical barriers, where deemed reasonable". The DOC M    is to allow everyone - disabled people, older people or those with
              (Part M of the Building Regulations 2010, volume 2) recommends   reduced mobility - easy access and to maintain maximum independence
              and imposes a variety of alternative layouts and product combinations   in their day-to-day life.
              in response to these obligations.

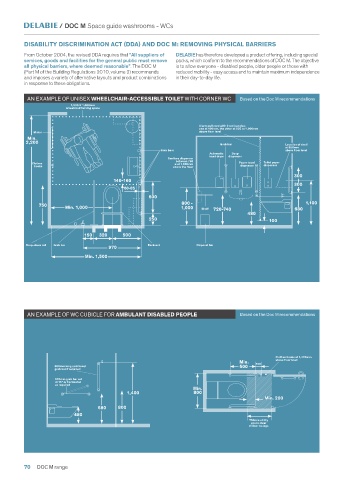

               AN EXAMPLE OF UNISEX WHEELCHAIR-ACCESSIBLE TOILET WITH CORNER WC          Based on the Doc M recommendations
                              1,500 x 1,500mm
                            wheelchair turning space


                                                                           Alarm pull cord with 2 red bangles;
                                                                           one at 100mm, the other at 800 to 1,000mm
                 Mirror                                                    above floor level
               Min.
              2,200
                                                                                   Grab bar              Location of shelf
                                                                                                         at 950mm
                                                              Grab bars                                  above floor level
                                                                               Automatic   Soap
                                                                               hand dryer  dispenser
                                                                Sanitary dispenser
                                                                   between 750
                Clothes                                            and 1,000mm           Paper towel  Toilet paper
                 hooks                                            above the floor         dispenser  dispenser
                                                                                                             300
                                             140-160
                                                                                                             300
                                                 60-85
                                                         600
                   750                                               800 -                                       1,100
                            Min. 1,000                               1,000  Shelf  720-740                   680
                                                                                            480
                                                         250                                        100
                                   150  320     500
              Drop-down rail  Grab bar                   Backrest         Disposal bin
                                           970
                                   Min. 1,500











               AN EXAMPLE OF WC CUBICLE FOR AMBULANT DISABLED PEOPLE                     Based on the Doc M recommendations








                                                                                                      Clothes hooks at 1,400mm
                                                                                         Min.         above floor level
                        600mm long additional                                            500   100
                        grab bar if required
                         600mm grab bar set
                         at 15° or horizontal
                         as required
                                                                         Min.
                                                  1,400                  800
                                                                                                  Min. 200
                                        680    800
                               480
                                                                                             750mm utility
                                                                                             space clear
                                                                                             of door swings






              70  DOC M range
