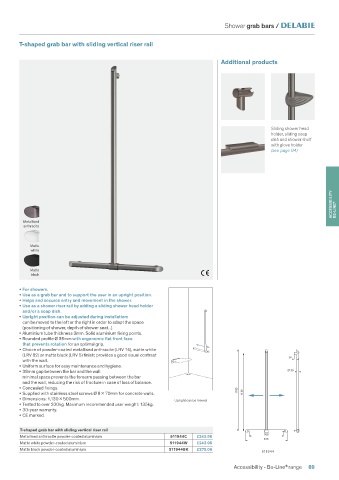

Page 91 - Accessibility-Accessories
P. 91

Shower grab bars /


            T-shaped grab bar with sliding vertical riser rail


                                                                                   Additional products

                                                                                                      NEW










                                                                                    NEW             Sliding shower head
                                                                                                    holder, sliding soap
                                                                                                    dish and shower shelf
                                                                                                    with glove holder
                                                                                                    (see page 92)







                                                                                                                          ACCESSIBILITY   BE-LINE ®










              Metallised
              anthracite


                Matte
                white


            • For showers.
            • Use as a grab bar and to support the user in an upright position.
            • Helps and secures entry and movement in the shower.
            • Use as a shower riser rail by adding a sliding shower head holder
             and/or a soap dish.
            • Upright position can be adjusted during installation:
             can be moved to the left or the right in order to adapt the space
             (positioning of shower, depth of shower seat...).
            • Aluminium tube thickness 3mm. Solid aluminium fixing points.
            • Rounded profile Ø 35mm with ergonomic flat front face
             that prevents rotation for an optimal grip.
            • Choice of powder-coated metallised anthracite (LRV 14)
             or matte white (LRV 82) finish; provides a good visual contrast
                                                                                                           38
             with the wall.
            • Uniform surface for easy maintenance and hygiene.
            • 38mm gap between the bar and the wall:                                                      Ø  35
             minimal space prevents the forearm passing between the bar
             and the wall, reducing the risk of fracture in case of loss of balance.
            • Concealed fixings.
            • Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.        1185  1130
            • Dimensions: 1,130 x 500mm.                           Upright can be moved
            • Tested to over 200kg. Maximum recommended user weight: 135kg.
            • 10-year warranty.
            • CE marked.



                                                                                                  500
            T-shaped grab bar with sliding vertical riser rail
                                                                                                  615
            Metallised anthracite powder-coated aluminium        511944C  £232.22
            Matte white powder-coated aluminium                  511944W  £232.22
                                                                                                 511944
                                                                                       Accessibility - Be-Line range  89
                                                                                                         ®
   86   87   88   89   90   91   92   93   94   95   96
