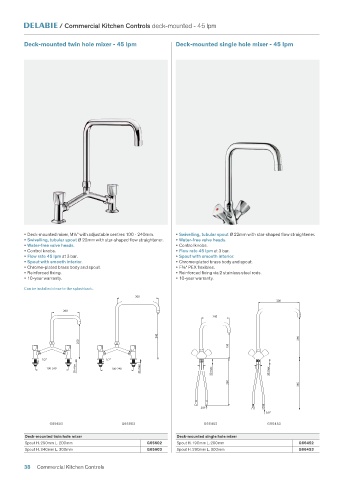

/ Commercial Kitchen Controls deck-mounted - 45 lpm


          Deck-mounted twin hole mixer - 45 lpm                Deck-mounted single hole mixer - 45 lpm








































          • Deck-mounted mixer, M½" with adjustable centres 100 - 240mm.  • Swivelling, tubular spout Ø 22mm with star-shaped flow straightener.
          • Swivelling, tubular spout Ø 22mm with star-shaped flow straightener.  • Water-free valve heads.
          • Water-free valve heads.                            • Control knobs.
          • Control knobs.                                     • Flow rate 45 lpm at 3 bar.
          • Flow rate 45 lpm at 3 bar.                         • Spout with smooth interior.
          • Spout with smooth interior.                        • Chrome-plated brass body and spout.
          • Chrome-plated brass body and spout.                • F⅜" PEX flexibles.
          • Reinforced fixing.                                  • Reinforced fixing via 2 stainless steel rods.
          • 10-year warranty.                                  • 10-year warranty.

          Can be installed close to the splashback.
                                                 300
                                                                                                  300
                       200
                                                                            200


                                                        340                                               290
                             250
                                                                                 190


                1/2"                  1/2"
                           26 max                 26 max                   30 max               30 max
                 100-240                100-240
                                                                                 360                      365




                                                                       3/8"
                                                                                                3/8"
                  G65602                    G65603                       G66452                G66453

          Deck-mounted twin hole mixer                         Deck-mounted single hole mixer
          Spout H. 250mm L. 200mm                    G65602    Spout H. 190mm L. 200mm                    G66452
          Spout H. 340mm L. 300mm                    G65603    Spout H. 290mm L. 300mm                    G66453
