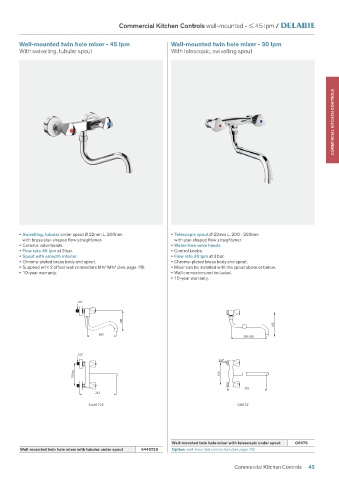

Page 45 - Professional_Catering
P. 45

Commercial Kitchen Controls wall-mounted - ≤ 45 lpm /


        Wall-mounted twin hole mixer - 45 lpm                Wall-mounted twin hole mixer - 30 lpm
        With swivelling, tubular spout                       With telescopic, swivelling spout






                                                                                                                      COMMERCIAL KITCHEN CONTROLS






























        • Swivelling, tubular under spout Ø 22mm L. 200mm    • Telescopic spout Ø 22mm L. 200 - 290mm
         with brass star-shaped flow straightener.             with star-shaped flow straightener.
        • Ceramic valve heads.                               • Water-free valve heads.
        • Flow rate 45 lpm at 3 bar.                         • Control knobs.
        • Spout with smooth interior.                        • Flow rate 30 lpm at 3 bar.
        • Chrome-plated brass body and spout.                • Chrome-plated brass body and spout.
        • Supplied with 2 offset wall connectors M½" M¾" (see page 79).  • Mixer can be installed with the spout above or below.
        • 10-year warranty.                                  • Wall connectors not included.
                                                             • 10-year warranty.




                            1/2"


                                            140
                                                                                                 165
                                    200
                                                                                      200-290
                            1/2"

                            1/2"
                                                                              3/4"
                           20
                           150 ±                                              150

                                                                                       275
                                  252
                                5445T2S                                             G6679







                                                             Wall-mounted twin hole mixer with telescopic under spout  G6679
        Wall-mounted twin hole mixer with tubular under spout  5445T2S  Option: wall-mounted connectors (see page 79)


                                                                                   Commercial Kitchen Controls  43
