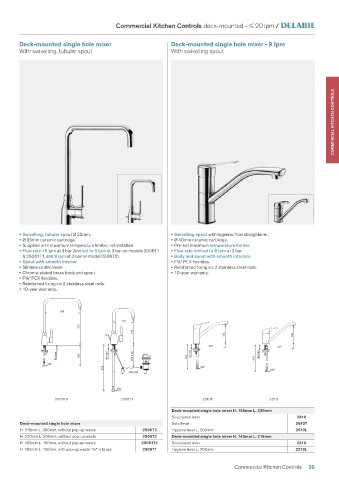

Commercial Kitchen Controls deck-mounted - ≤ 20 lpm /


        Deck-mounted single hole mixer                       Deck-mounted single hole mixer - 9 lpm
        With swivelling, tubular spout                       With swivelling spout






                                                                                                                      COMMERCIAL KITCHEN CONTROLS






























        • Swivelling, tubular spout Ø 22mm.                  • Swivelling spout with hygienic flow straightener.
        • Ø 35mm ceramic cartridge.                          • Ø 40mm ceramic cartridge.
        • Supplied with maximum temperature limiter, not installed.  • Pre-set maximum temperature limiter.
        • Flow rate 15 lpm at 3 bar (limited to 5 lpm at 3 bar on models 2506T1   • Flow rate limited to 9 lpm at 3 bar.
         & 25061T1, and 9 lpm at 3 bar on model 2506T2).     • Body and spout with smooth interiors.
        • Spout with smooth interior.                        • F⅜" PEX flexibles.
        • Slimline control lever.                            • Reinforced fixing via 2 stainless steel rods.
        • Chrome-plated brass body and spout.                • 10-year warranty.
        • F⅜" PEX flexibles.
        • Reinforced fixing via 2 stainless steel rods.
        • 10-year warranty.



                      300
                                            150
                             315
                                                195
                                                                                155                     145

                                                                          230                     215
                     40 max  360       40 max   300 max  Ø 63      365  35 max            410  40 max

                  3/8"
                                     355                                3/8"                     3/8"
                                              200 max

                                          3/8"
                    2506T3                 2506T1                       2510T                   2210

                                                             Deck-mounted single hole mixer H. 155mm L. 230mm
                                                             Sculptured lever                            2510
        Deck-mounted single hole mixer                       Solid lever                                 2510T
        H. 315mm L. 300mm, without pop-up waste    2506T3    Hygiene lever L. 200mm                      2510L
        H. 220mm L. 200mm, without pop-up waste    2506T2    Deck-mounted single hole mixer H. 145mm L. 215mm
        H. 195mm L. 150mm, without pop-up waste    25061T1   Sculptured lever                            2210
        H. 195mm L. 150mm, with pop-up waste 1¼" in brass  2506T1  Hygiene lever L. 200mm                2210L
