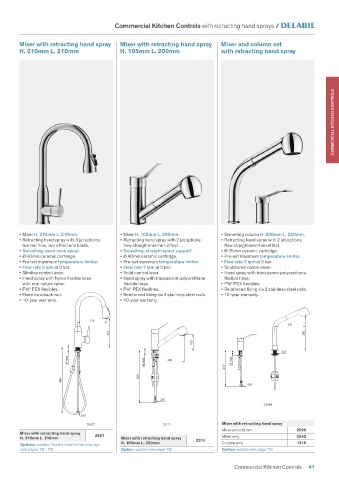

Page 43 - Professional_Catering
P. 43

Commercial Kitchen Controls with retracting hand sprays /


        Mixer with retracting hand spray   Mixer with retracting hand spray    Mixer and column set
        H. 210mm L. 210mm                  H. 105mm L. 200mm                   with retracting hand spray






                                                                                                                      COMMERCIAL KITCHEN CONTROLS






























        • Mixer H. 210mm L. 210mm.         • Mixer H. 105mm L. 200mm.          • Swivelling column H. 200mm L. 220mm.
        • Retracting hand spray with 3 jet options:   • Retracting hand spray with 2 jet options:    • Retracting hand spray with 2 jet options:
         laminar flow, rain effect and blade.  flow straightener/rain effect.     flow straightener/rain effect.
        • Swivelling, swan neck spout.     • Swivelling, straight spout support.  • Ø 35mm ceramic cartridge.
        • Ø 40mm ceramic cartridge.        • Ø 40mm ceramic cartridge.         • Pre-set maximum temperature limiter.
        • Pre-set maximum temperature limiter.  • Pre-set maximum temperature limiter.  • Flow rate 7 lpm at 3 bar.
        • Flow rate 5 lpm at 3 bar.        • Flow rate 7 lpm at 3 bar.         • Sculptured control lever.
        • Slimline control lever.          • Solid control lever.              • Hand spray with transparent polyurethane
        • Hand spray with Nylon flexible hose    • Hand spray with transparent polyurethane   flexible hose.
         with non-return valve.             flexible hose.                      • F⅜" PEX flexibles.
        • F⅜" PEX flexibles.                • F⅜" PEX flexibles.                 • Reinforced fixing via 2 stainless steel rods.
        • Fixed via a back-nut.            • Reinforced fixing via 2 stainless steel rods.  • 10-year warranty.
        • 10-year warranty.                • 10-year warranty.



                                 210
                                                                                                      220
                                       210                                                                  200

                                                                     105
                                                                                                    3/4"
                         30 max                     40 max  200                   35 max
                                                                                410
                                                  360
                       480
                                                                                        3/8"

                                                         3/8"
                                                                                              2599

                              3/8"
                                2597                      2211                 Mixer with retracting hand spray
                                                                               Mixer and column          2599
        Mixer with retracting hand spray
                                  2597                                         Mixer only                2542
        H. 210mm L. 210mm                   Mixer with retracting hand spray
                                                                      2211
        Options: wastes, flexible hose for hand sprays   H. 105mm L. 200mm      Column only               1316
        (see pages 78 - 79)                 Option: wastes (see page 79)       Option: wastes (see page 79)
                                                                                   Commercial Kitchen Controls  41
   38   39   40   41   42   43   44   45   46   47   48
