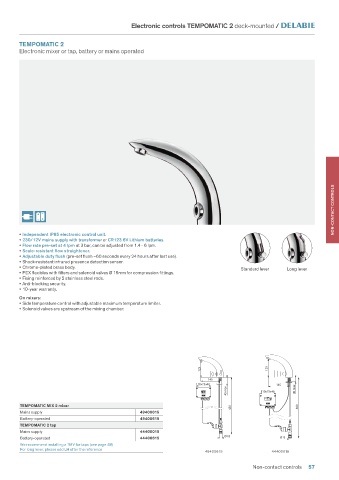

Electronic controls TEMPOMATIC 2 deck-mounted /


        TEMPOMATIC 2
        Electronic mixer or tap, battery or mains operated



























                                                                                                                      NON-CONTACT CONTROLS









        • Independent IP65 electronic control unit.
        • 230/12V mains supply with transformer or CR123 6V Lithium batteries.
        • Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
        • Scale-resistant flow straightener.
        • Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
        • Shock-resistant infrared presence detection sensor.
        • Chrome-plated brass body.                                                   Standard lever  Long lever
        • PEX flexibles with filters and solenoid valves Ø 15mm for compression fittings.
        • Fixing reinforced by 2 stainless steel rods.
        • Anti-blocking security.
        • 10-year warranty.
        On mixers:
        • Side temperature control with adjustable maximum temperature limiter.
        • Solenoid valves are upstream of the mixing chamber.











                                                                       125                     125

                                                                          145
                                                                      110x75x40                   145
                                                                                45 max       110x75x40   40 max

        TEMPOMATIC MIX 2 mixer                                                    450                     460
        Mains supply                              49400015
        Battery-operated                          49400615
        TEMPOMATIC 2 tap
        Mains supply                              44400015
        Battery-operated                          44400615                      Ø 15               Ø15
        We recommend installing a TMV for taps (see page 86)
        For long lever, please add LH after the reference
                                                                         49400615               44400615

                                                                                          Non-contact controls  57
